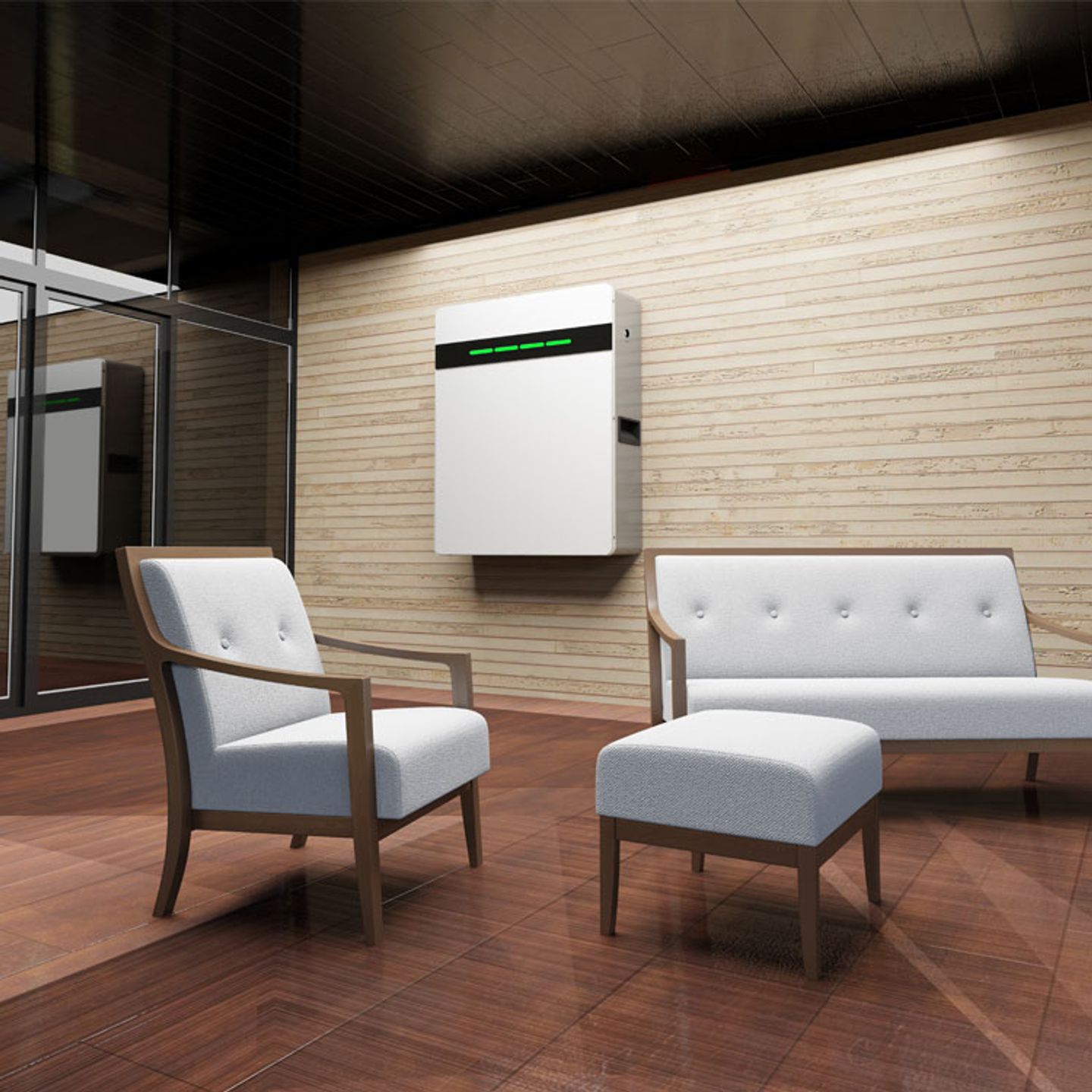

Zwayn - Model SDN2000-5KWH - Solar Energy Storage System
All in One Solar Energy Storage System with 5KWH LiFePO4 Battery Off-grid 2KW Inverter for Household. A fully-integrated Solar Energy Storage System. With rechargeable lithium-ion battery stationary energy storage and off-grid inverter and controller. SDN2000-5KWH is intended to be used for home energy storage and stores electricity for solar self-consumption, time of use load shifting, backup power, and off-the-grid use. SDN2000-5KWH electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves market-leading energy density and is easy to install, enabling owners to quickly realize the benefits of reliable, clean power.
Most popular related searches
solar energy storage system
energy storage system
solar energy storage
solar storage system
solar energy system
energy storage
solar energy
rechargeable lithium battery
industrial energy storage system
off-grid inverter
- Model: SDN2000-5KWH
- Battery Type: LiFePO4 Battery
- Battery Voltage: 48V
- Battery Capacity: 105Ah
- Inverter: Off-grid 2000W (with MPPT controller)
- AC Output Socket: 110V/240V
- Application: Solar Household Commercial / Industrial / Energy Storage System ESS
- Rated Voltage: 48VDC
- Charge Current: 50A
- Battery Type: Lifepo4
- Capacity: 105Ah
- put Voltage Range: 170-275VAC
- Input frequency: 45-65Hz
- Output voltage range: 220VAC; ±5%( Inverter mode)
- Output frequency: 50/60Hz±1%( Inverter mode)
- Output wave: Pure Sine Wave
- Output Change time:
- Output overcharge: 110-120%/30S;>160%/300ms
- Output Protection function: Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection
- Dimensions: L * W * H (mm): 555*515*540mm
