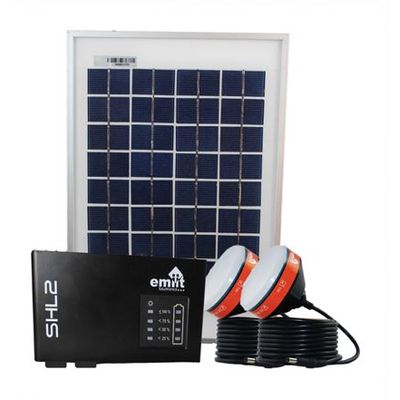

Emiit - Model SHL2 -Solar Home Lighting
One lamp is fitted with 5 meters cable and another lamp is fitted with 8 meter cable to cover larger area of home indoor and outdoor. The lamps are water proof with Ingress Protection Rating – IP 62 as per IEC 60529. The system comes with 1 USB A type, 5.1v 600mA output capacity. The product includes 8W solar panel with 5 meter cable and a multi-link USB cable.
2 x 1W LED LAMPS + 1 USB PORT with 8w Solar Panel
Solar Home Lighting with any level dimming from 1W to 0.1W.
8 hours backup at 2 x 1W LEDs in 100% brightness
16 hours backup at 2 x 1W LEDs in 50% brightness
32 hours backup at 2 x 1W LEDs in 25% brightness
80 hours backup at 2 x 1W LEDs in 10% brightness
- MPPT solar charging technology
- 8W Solar Panel – bigger & faster charging
- Li-ion battery bank for quick charging
- Readable LED Indications for battery status
- Solar intensity indication for better panel placement
- Dual Charging: Solar Panel and/or AC Adapter charging
- Constant Current Constant Voltage Charging for battery
- Hi-Power LEDs for more brightness. 110 lumens per watt
- Longer Lasting LEDs. Lifetime >40,000 hours
- Any Level Dimming from 1W to 0.1W
- IP 62 rated lamps for outdoor use
- 1 USB port. 5.1v 600mA output.
- Over Charge and Deep Discharge protection
- Short circuit and overload protection
- User Friendly Plug & Play Operation
- 1W LED light with 5 meters cable
- 1W LED light with 8 meters cable
- 8W Solar Panel with 5 meters cable
- USB Multi-line charging cable
- Controller unit
- User manual
CONTROLLER SPECIFICATIONS
Charging Type: Maximum power point tracking (MPPT),maintains CC-CV for charging
Input terminal: Dual Source: Solar Input & AC Adaptor Input 2.1mm dia sockets
Load terminal: 2 PORTS for LED lamps and 1 Mobile Charging port
System On/Off: Manual Switch
BATTERY SPECIFICATIONS
Battery Type: Lithium –ion
Battery Voltage: 3.7V
Battery Capacity: 5200mAh
Max Charge Current: 2000mA
Max. Discharging Current: 2000mA
Max. Battery voltage: 4.2±0.05V
Load Disconnect Voltage: 3.1±0.05V
Backup hours when charged fully: 8 hours for light load (Time varies depends on USB port usage)
SOLAR PANEL SPECIFICATIONS
Panel Power: 8W SPV with 5 meters cable
Open circuit voltage (Voc): 21.78V (subject to change)
Voltage at max. power (Vmp): 17.30V (subject to change)
Current at max power (Imp): 460mA (subject to change)
Short Circuit current (Isc): 610mA (subject to change)
MOBILE CHARGING SPECIFICATIONS
USB Ports: 1 NO; USB Type A
Max output Voltage: 5.1V±0.1V
Max Current: 600mA
1W LED LAMP SPECIFICATIONS (Total 2 LED Lamps Provided)
Operation Voltage: 9.6V max @ 150mA
Output: 1W, 110 Lumens
Light Color: Cool White (6,500K)
Dimming: Linear from 1W to 0.1W
Ambient Temperature: 0°C to +50°C while charging; -20°C to +50°C while discharging
Efficiency: >95% peak
Connector Cables with 2.5mm DC jack: 5 meters cable for one lamp and 8 meters cable for another lamp
Type of Protection: IP62
PACKAGING BOX
Dimension (L X W X H): 265x110x370mm
Weight: 3.3Kg
