DSEPL - Model SHLS-L3 -Solar Home Lighting System
Maximum Power Point Tracking Technology (MPPT). Maintains CC - CV. Peak efficiency 95%. Reverse polarity protection. Battery Monitoring system. SOC - and - voltage - control LVD. Over charge and discharge protection. Load short circuit protection / Overload protection. Lighting protection. Compact in size. USB output to charge Mobile, MP3, and Etc.
Most popular related searches
low voltage protection
solar home lighting system
lighting system
high voltage protection
lithium battery
lithium ion battery
battery monitoring system
domestic solar lighting
battery protection
battery capacity
- Model: SHLS-L3
- Charging Type: Maximum Power Point Tracking (MPPT)
- Panel Power: 5Wp
- Maximum Panel Voltage [VOC]: 21V (Over voltage protection by varistor)
- Battery Type: Lithium-ion
- Battery Capacity: 7.4V / 2600mAh
- Battery Protection: Active HVD and LVD , Inbuilt BMS circuit
- High Voltage Protection: 8.4V ± 0.05V
- Low Voltage Protection: 6.4V ± 0.05V
- Efficiency: >95% peak
- Max Charging Current: 600mA
- Max Discharging Current: 1300mA
- DC Load Nominal Voltage: 6-12 V
- Electronic Protection: PV Reverse polarity, Reverse current flow at night, Surge Transient, Load short circuit, over current, High and Low voltage protection at battery side.
- LED Indications: Green : Solar , Yellow : Battery SOC , Red : Fault indication
- Ambient Temperature: 0°c to +50°C while charging ; -200C to +500C while dis-charging
- Protection: IP 22
- USB Connector: USB Type A ; 5.5 V ; 500mA
- Load: DC jack 6.5mm - 3 output terminals
- Weight In Kg: 2.57 Kg
- Dimension (L XW X H) Mm: 350 x 250 x 115

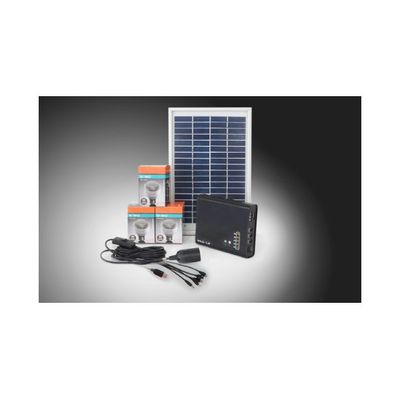

- Accessories: Panel with cable - 1No, DC LED Lamp 1W - 3 Nos, E-27 Lamp holder assembly with switch - 3 No’s and mobile charging connector - 1No .
