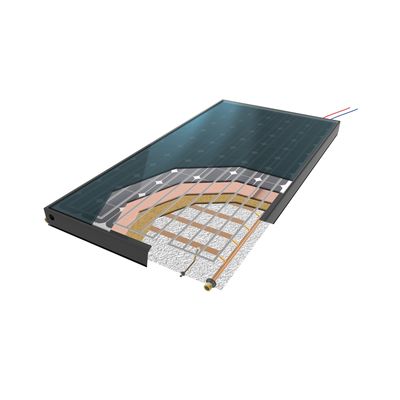

SolarMaster - Model PVT-545M -Solar Hybrid PV-Thermal Panel

SolarMaster PVT Hybrid Solar Panel is a revolutionary product which simultaneous solar thermal and solar photovoltaic production. It can enhance the PV efficiency max 50%, and meanwhile produce hot water for commercial and residential use. The design of PVT Solar Panel is the first type in China, with the following key features:

• Solar PV & Solar Thermal in one unit.
• Solar PV efficiency raise up 20%-50%.
• Extend the PV lifetime thanks to the unique internal cooling system.
• Hot water been produced at 40-70 C degrees.
• Simple structure, less maintaining.
• High wind load strength and High snow load strength.
• Easy installation.

Model: PVT-545M
Lenghth: 2256mm
Width: 1133mm
PV Peak Output *: 545W
Solar Thermal Peak Output: 1436W
Gross Area: 2.56m2
Number of Cells: 144
Dimensions of the Cell: 182*91mm
Front Glass: 3.2mm Tempered
Framework: 6005-T5 Aluminum Alloy

Component:  PV Specifications
Cell Type: Mono-crystalline / Poly
Power Rang: 340W-545W
Maximum power voltage (Vmpp): 41.8V
Maximum power current (Impp): 13.04A
Open circuit voltage (Voc): 49.65V
Short circuit current (Isc): 13.92A
Module ef?ciency (%): 21.30%

Component: Thermal Specifications
Thermal Efficiency: 70%
Coef?cient of thermal losses, a1: 3.2 W/m².K
Coef?cient of thermal losses, a2: 0.019 W/m².K²
Internal liquid capacitance: 1.8L-2.3L
Stagnation temperature: 150 C
Maximum permissible pressure: 10 bar
Solar Thermal Peak Output: 1436W at 545W PV Panel
