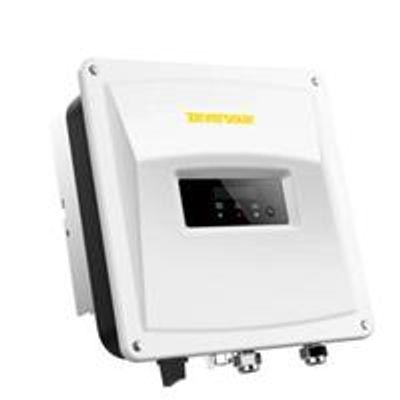

Zeverlution - Model 1000S - Solar Inverters

SHARE

The Zeverlution inverter generation combines all aspects of our beliefs into simple, reliable and affordable PV inverters. By introducing a patented inverter topology we used less power electronic components for further increased reliability. At the same time we have reduced the weight of the inverter by nearly 50%, making it even simpler to install and use. An increased efficiency of 97.5% ensures higher generation over the life time of your pv plant. Furthermore, integrated monitoring via Ethernet or WiFi communication is available whenever you want, our Zeverlution series.

Most popular related searches

current monitoring system

power electronic

mounting bracket

electrical installation

photovoltaic plant

grid monitoring

current monitor

Extremely lightweight at only 6.5kg
Compact design with IP65 casing for outdoor use
Plug-in AC connector for easy electrical installation
Higher power yield with efficiency of 97.5%
Extremely quiet at less than 15dB noise
Higher operating altitudes up to 3000m without derating
Optional integrated Ethernet and Wi-Fi communication
Supports remote firmware update

Input (DC)

Max. PV array power 1430 Wp STC
Max. input voltage 500 V
MPP voltage range / rated input voltage 70 V to 450 V / 360 V
Min. input voltage 70 V
Initial feed-in voltage 90 V
Max. operating input current per MPPT 11 A
Max. short circuit current per MPPT / per string input 16.5 A / 16.5 A
Number of independent MPPT inputs / strings per MPPT input 1 / 1

Output (AC)

Rated power 1000 W
Max. apparent AC power 1100 VA
AC nominal voltage 220 V / 230 V / 240 V
AC voltage range 180 V to 280 V
AC grid frequency / range 50 Hz / 45 Hz to 55 Hz
60 Hz / 55 Hz to 65 Hz
Rated grid frequency / rated grid voltage 50 Hz / 230 V
Max. output current 5.5 A
Power factor at rated power 1
Adjustable displacement power factor 0.8 overexcited to 0.8 underexcited
Feed-in phases 1
Harmonic distortion (THD) at rated output < 3%

Efficiency

Max. efficiency / European efficiency 97 % / 96.3 %

Protective devices

Input-side disconnection device ●
Ground fault monitoring / grid monitoring ● / ●
DC reverse polarity protection / AC short circuit current capability ● / ●
All-pole-sensitive residual-current monitoring unit ●
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) I / AC : III ; DC : II

General data

Dimensions (W / H / D) 346 / 346 / 132 mm
Weight 6.5 kg
Operating temperature range -25 ℃ to +60 ℃
Noise emission (typical) < 15 dB(A)
Self-consumption (at night) < 1 W
Topology Transformerless
Cooling concept Convection
Degree of protection (according to IEC 60529) IP65
Climatic category (according to IEC 60721-3-4) 4K4H
Max. permissible value for relative humidity (non-condensing) 100%
Max. operating altitude 4000 m
(>3000m derating)

Features

DC connection SUNCLIX
AC connection Plug-in connector
Mounting type Wall mounting bracket
Display 16 x 2 characters LCD
LED Indicators (Status / Fault / Communication) ●
Interface: RS485 / WLAN & Ethernet 1) & 2) ○ / ○
Certificates and approvals (more available on request) CE, EN50438, G83/2, VDE-0126, VDE-AR-N4105, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2, CNS15382, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068
