Solar-Log - Model 10 - Power Meter
From Solar-Log- Accessories - Power Meters

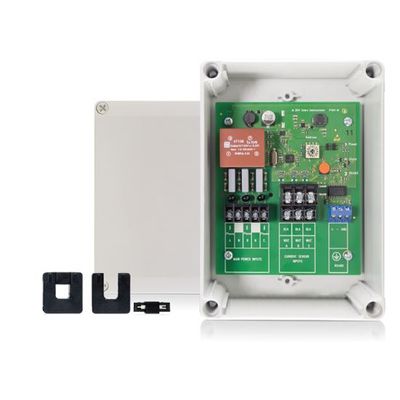

Maximize plant performance and confirm net metering bills by automatically calculating the amount of consumed grid power using the Solar-Log 10 Meter. This bidirectional power meter connects to Solar-Log® data loggers via RS485 and allows plant owners to monitor total building-load by measuring power inside the main distribution panel at the utility connection. The meter includes 2 current transformers for measuring the current and phase voltage.
Technical Data
- Input Voltage Configuration Single (split) Phase
- Main Voltage Input 100-240 VAC, -15% / +10%
- Input Power <1.2 Watt
- Current Sensor Rating* Up to 200A
- Power Factor 0.0 - 1.0 CosPhi
- Accuracy <1% with calibrated CTs
- Line Frequency 50 - 60 Hz
- Voltage Operating Rate +/- 10 % Of Rated Load
- Temperature Range -40F to 140F
- Altitude 2000 Meters Maximum
- Voltage Overload 10%
- Current Sensor Overload 10%; 100% for 1 minute
- Installation (Surge Category) CAT III
- Measurement Category CAT III
- Enclosure Material NEMA 4X/6 // IP 66/67:
- Standards EN 62208, UL Listed
- Current Transformers Single (Split Phase), 120/240 VAC: up to 200 A
- Current Transformers (2) Solar-Log® 200 A Split Core
- Outside Diameter 2 inch x 2 inch x 0.5 inch
- opening 0.75 inch
- 10 feet (extension options available)
- Compatibility Solar-Log 50, Solar-Log 370, Solar-Log Base 15, Solar-Log Base 100, Solar-Log Base 2000
- Other Made in the USA
