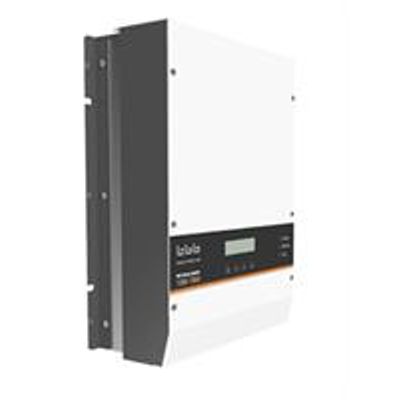

TBB - Solar Mate

Solar Mate can optimize the PV’s output and eliminate fluctuation due to shading or temperatures variables. It is a multi-voltage MPPT with built in sophisticated battery charging algorithm for both lead acid battery and lithium-ion battery, of which can support a wide variety of system designs. Meanwhile, the data management with 12 months of history record can tell users the actually performance of their systems.

Thanks to its self cooling design and IP43, it is suitable for most rugged environment with dust or bugs. All range products can operate at their full rating in ambient temperature as high as 40°C.

• For off grid photovoltaic system up to max 2 KW.
• Max efficiency 98%.
• Excellent performance at sunrise and low solar insulation levels.
• Low self consumption.
• Self cooling design for high reliability.
• Built in TBB premium II battery charging algorithm for lead acid battery.
• Lithium battery compatible
• Data logging.
• RS485 support T-Bus.
• Optional Bluetooth connection with the APP to provide further convenience.
• IP43.
