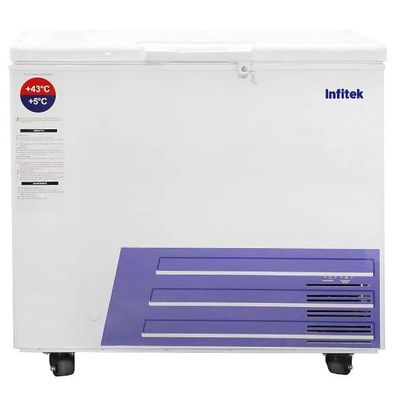

Infitek - Model CRF10-S97 -Solar Medicine Refrigerator

Solar vaccine refrigerator and freezer is used in vaccine storage, medicines and ice packs, suitable for hospitals, CDC, and scientific research institutions, etc.

• Solar direct drive, green and environmental protection.
• Microcomputer control, solar temperature display, resolution is 0.1℃.
• 30 days temperature record.
• Wide climate design, suitable for 5~43℃ ambient temperature.
• Over 180 hours of holdover at 43℃ ambient temperature.

• Multiple alarm functions: high and low temperature alarm, sensor malfunction alarm , low-battery alarm.
• Two alarm modes: Sound buzzer alarm, digital flashing alarm.

• Safety door lock design to prevent arbitrary opening.
• USB charging function.
• Aluminum inner tank design, a drainage hole at the bottom, easy to clean.
• With baskets, easy to use.
• Low noise.

Technical Data:

• Model: CRF10-S97
• Type: Chest Type
• Vaccine Gross Capacity: 59L
• Vaccine Storage Capacity: 48L
• Freezer Gross Capacity: 38L
• Holdover Time: 180h
• Water-pack Freezing Capacity: 2kg/24h
• Water-pack Storage Capacity: 10kg
• Cooling Type: Direct Cooling
• Door: Foaming Door
• Refrigerant: R290

Temperature Control

• Vaccine Working Temperature: 2~8℃
• Freezer Working Temperature: ≤-10℃
• Ambient Temperature: 5℃~43℃
• Controller: Microprocessor
• Temperature setting Accuracy: 0.1
• Display: LED Digital Display

Electrical Data

• Voltage: DC 18-28V
• Power: 190W
• Current: 8A
• Power Consumption (Stable Running): 1.7kW•h/24h
• Power Consumption (Cool Down Test): 2kW•h/24h

Dimensions

• Exterior Dimension(W*D*H): 1050*750*975mm
• Package Dimension(W*D*H): 1127*781*1075mm

Weight

• Net Weight: 100kg
• Gross Weight: 130kg

Functions

• High /Low Alarm Function: Yes
• Sensor Error Alarm: Yes
• Low Battery Alarm: Yes
• Freeze-Protection Classification: A
• Data Interface: USB
• Charging Interface: 5V

Accessories

• Vaccine Basket Qty.: 2
