Solar - Model Type 9133-1 -Three Phase `Delta` Capacitor Assembly

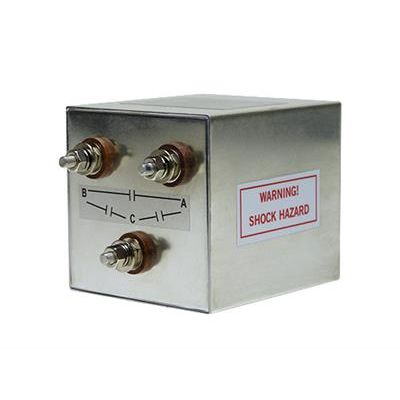

Solar Type 9133-1 Three Phase Capacitor Assembly for Line-to-Line Capacitance in Delta Connected Power Systems. This handy device contains three capacitors, 10 µF each, connected to provide capacitance from phase A to B, A to C, and B to C. The capacitors are rated at 270 VAC. As a safety feature, each capacitor is paralleled with a 500 K resistor to prevent a voltage charge from remaining on the assembly after power is disconnected. It is fitted with 1/4-28 feedthru studs to facilitate making connection from three phase power to a three phase load up to 100 A. The Type 6512-106R capacitor can be used for the neutral in `wye` connected power systems.
