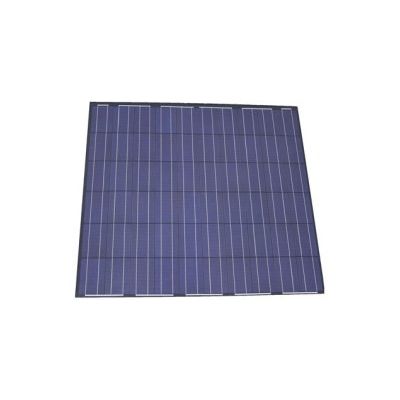

Model 258W - Solar Modules
SBM Solar, Inc., founded 2002, is one of the first manufacturers of a UL certified, non-glass, non-EVA and crystalline PV solar module. The module’s multi-layered structure provides excellent environmental and chemical protection, better moisture resistance. The encapsulating package is the combination of a Fluoropolymer film provided by DuPont and the adhesive encapsulating material, by The Dow Chemical Company, performs superior comparing to commonly used EVA. This non-glass PV module is manufactured in the USA.
LIGHTWEIGHT
SBM’s solar modules are 40-50% lighter than glass panels. This makes easier for shipping, handling, and installation, and save cost.
SHATTERPROOF/DURABLE
When the glass module is shattered, its entire module will be subsequently loss of power. SBM’s non glass modules are completely shatterproof. It is able to withstand the hazardous environmental conditions (hail, rain, wind, heat, cold, and humidity). They are IEC 61215 certified for hail impact resistance.
HIGH TRANSPARENCY / LOW GLARE
Blinding glare associated with glass panels can be dangerous and unsafe in certain applications. SBM’s solar module utilizes its advanced material property to reduce the reflection. This makes SBM solar modules perfect for applications where glare becomes a critical safety issue such as in military, airport, and highways.
HIGH EFFICIENCY C-Si SOLAR CELLS
SBM Solar modules have over twice the wattage per square foot compared to thin film. They have over 19% cell efficiency and 14.7 watts per square foot compared to thin film’s 6-8% module efficiency and 5 watts per square foot.
Besides our standard panels, SBM also develops customized and / or building integrated solar applications. This provides architects and engineers optimal architectural flexibility which preserves design and aesthetic integrity.
