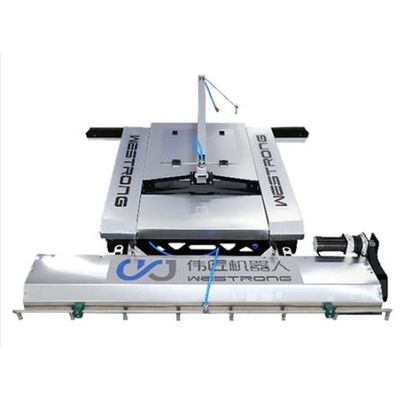

WESTRONG CLEAN - Model BQ-1200 -Solar Panel Cleaning Robot
The BQ-1200 Solar Panel Cleaning Robot by WESTRONG CLEAN is engineered with an advanced modular design that allows seamless movement and installation across various photovoltaic power stations. Its lightweight yet sturdy construction features an anti-skid track which enhances stability while cleaning, ensuring no damage to the panel surfaces during operation. With remote wireless control, it exhibits high maneuverability and the ability to achieve superior cleaning performance, delivering up to five times the cleansing effect in a single pass. The robot runs at a travel speed of 50 meters per minute with a cleaning efficiency of 2000-3000 square meters per hour. It is protected against environmental elements with an IP65 ingress protection rating. Powered by a 48V 20Ah Lithium battery, the cleaning device supports a water flow rate of 14 liters per minute at 12 to 14 MPa, ensuring efficient and effective cleaning for solar panels.
BQ-1200 distributed photovoltaic cleaning robot adopts the international advanced cleaning robot design concept. The body is light and solid, with compact structure. It adopts a modular combination installation method, which is very convenient to move and install, and has a wide range of applications. It can be used in different photovoltaic power stations to clean different photovoltaic arrays. WESTRONG CLEAN is equipped with a special anti-skid track, which can increase the contact area with the photovoltaic panel. When washing with water, it will not damage the panel surface, and will not slip. It is safe and reliable to use. WESTRONG CLEAN photovoltaic cleaning robot runs fast. The front and rear ends of the robot are equipped with efficient cleaning devices. Five times of cleaning effect can be achieved in one walk. The cleaning efficiency is high and the effect is good. WESTRONG CLEAN PV cleaning robot is controlled by remote wireless remote control, which is more flexible to use.
- Machine size (L * w * h) : 1300*1320*400mm
- Chassis weight : 26kg (excluding battery roller brush)
- Roller brush weight : 13kg
- Scraper weight : 2.0kg
- Battery weight : 7.2kg
- Total weight : 48.2kg
- Roller brush length : 1200mm
- squeegee length : 1200mm
- Lithium Battery Specification : 48V 20Ah
- Travel speed : 50M / min (horizontal panel)
- Cleaning efficiency : 2000-3000m2/h ①
- Roller brush speed : 300r/min
- Remote control distance : 50m
- Gradeability : < 20 ︒
- Horizontal crossing capacity : 400mm
- Track width : 100mm
- Length of equipped water pipe : 100m
- Ingress protection : IP65
- Recommend water flow : 14L/min, 12-14Mpa
