Westrong Clean - Model BQ-600 -Solar Panel Cleaning Robot - Centralized Solar Panel Cleaning Robot
The Centralized Solar Panel Cleaning Robot by WESTRONG represents an innovative approach to maintaining photovoltaic installations, particularly targeting low height range power stations. This advanced system features a long-rod through-water brush designed as an auxiliary component for effective and efficient cleaning. The JR series encapsulates the latest advancements, incorporating a centralized cleaning robot and a ground transfer vehicle. The JR series is developed with all intellectual property rights reserved, showcasing the company's commitment to innovation in robotic cleaning solutions. It aims to optimize the operational efficiency of solar panels by ensuring cleanliness, which in turn maximizes energy absorption. This system is engineered to withstand various environmental conditions, providing reliability and performance consistency. WESTRONG's offerings include a 24-hour hotline support service, catering to pre-sales, in-sales, and after-sales needs, reinforcing their focus on customer satisfaction and service quality.

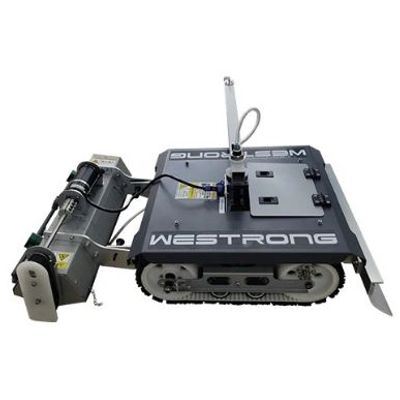

BQ-600 distributed photovoltaic cleaning robot, with same chassis structure with BQ500, is used for cleaning small distributed photovoltaic power stations and on roof solar plants. The cleaning length of front end rotating cleaning roller brush has been updated to 600m, which help users clean up more solar panels corners. The rear end is equipped with a scraper to wipe up waste water. The whole machine is compact in design and light in body. The whole robot is modular assembly and controlled by wireless remote control. BQ600 wildly used in house roof cleaning, small distributional solar plants in South America, China Taiwan, and Asia countries.
- Machine size (L * w * h) : 800*680*300mm
- Chassis weight : 10.8kg (excluding battery roller brush)
- Roller brush weight : 6.35kg
- Battery weight : 3kg
- Total weight : 19.65kg
- Roller brush length : 600mm
- Scraper length : 600mm
- Lithium Battery Specification : 29.4V 10Ah
- Travel speed : 30m / min (horizontal panel)
- Cleaning speed : About 1000m2/h ①
- Roller brush speed : 240r/min
- Remote control distance : 50m
- Gradeability : < 20︒
- Horizontal crossing capacity : 100mm
- Track width : 70mm
- Length of equipped water pipe : 50m
- Ingress Protection : IP65
- Recommend water flow : 8L/min, 8-10Mpa
