EcoFoot2+ - Solar Panel Flat Roof Racking System
EcoFoot2+, the fast, simple, universal ballasted solar racking system for commercial rooftops.
EcoFoot2+ is rated byDNV-GLwith an impressive install speed of 13.5 modules per installer-hour.
Backed by industry leading third-party validation and in-house testing, EcoFoot2+`s mounting system is designed to last the entire life of your solar project.
Both our in-house team of product experts and our field-based team of installation trainers provide you dedicated support on your project.
- Solar project layouts completed within 2-3 days of request to support the project planning process.
Provide the basic project specs and the expert team of Ecolibrium Solar designers will do the rest. The resulting package is permit and procurement ready.
Stamped engineering package designed within 3-4 days of request to meet even the strictest project requirement.
EcoFoot2+`s pre-assembled components and simple installation process ensure your project timelines and labor targets are met.

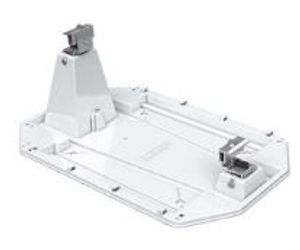

Base
The base is the hub of the ballasted mounting system. The optimized shape is lightweight, roof friendly, and can be quickly positioned on the roof.

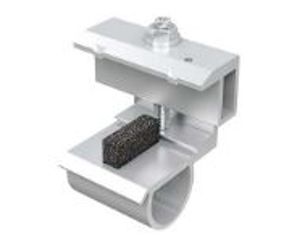

Clamp
The pre-assembled clamp connects the modules to the rack base. The integrated ground and universal nature speeds the installation process.
Deflector
The deflector simply bolts on to the pre-assembled clamp and helps reduce wind loads on the racking system. The deflector carries the UL2703 validated ground path from both the modules and all racking components in each row.

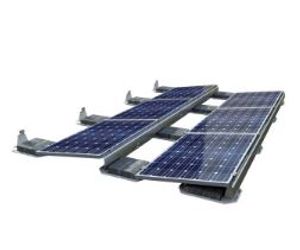

Finished Array
The EcoFoot2+ solar panel mounting system provides a structurally rigid and electrically connected array while simplifying the installation process.
Solar Mounting System
- Ballasted flat roof system
Materials
- White, ASA, UL Listed Resin
Dimensions
- 26.5″ L x 18.25″ W x 8.3″ H
Weight
- 4 lbs.
Orientation
- Landscape and Portrait
Tilt Angle
- 5° – 10°
Inter-Row Spacing
- 18.5"
- Roof Pitch
- 0° – 7°
Ballast Requirements
- 4" x 8" x 16" roof paver (31.5 lbs. each)
Installed Weight
- 3 – 7 psf
- Warranty
- 25 Years
Code Compliance
- UL 2703 Qualified, Bonding/Grounding
- Fire Tested for Commercial Rooftops
- Compliant with SEAOC Seismic Codes
- Wind Tunnel Tested for 150 mph
- Structurally Tested
