Forest Technology Systems Ltd. (FTS) - an AEM brand

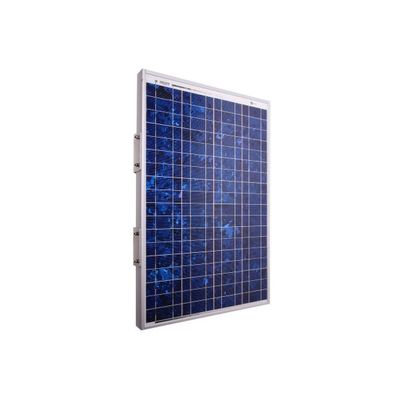

FTS - Model SPS-20W-M -Solar Panels
FTS Solar Panels are available in two sizes, all suitable for use with environmental monitoring stations. The 20W panel is a standard component of all our systems, a 50W panel is also available. The solar panels include a mounting bracket for securing to vertical 11⁄2” diameter poles and a cable with a bayonet connector for easy, quick-connect compatibility with Axiom Dataloggers. Because the Axiom contains a built-in power manager, there is no requirement for an external solar charge regulator.
Most popular related searches
solar panel
solar charge regulator
mounting bracket
solar charge
solar panel mounting
solar mounting bracket
solar mounting
- Maximum Power: 20W
- Voltage at Max Power: 17.3V
- Current at Max Power: 1.2A
- Short-circuit current: 1.2A
- Open-circuit voltage: 21.7V
- Operating range: -30°C to 60°C
- Dimensions:
- Length: 55.4cm (21.8”)
- Width: 39.0cm (15.35”)
- Height: 3.4cm (1.33”)
- Weight: 2.95 kg (6.5lbs)
