KL Solar - Model KL200 / KL220 - Solar ...

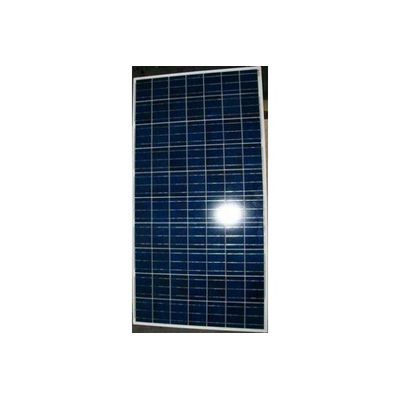

KL Solar - Model KL200 / KL220 -Solar Photovoltaic Modules

FromKL Solar Company Pvt. Ltd.,

SHARE

KL Solar provides cost-effective photovoltaic power for general use, operating DC directly or, in an inverter-equipped system, AC loads. The 70 cells in PV Module provides 200Watts to 220Watts of maximum power w.r.t KL200 to KL220, when it is used primarily in utility gridsupplemental systems, telecommunications, remote villages and clinics, pumping and load-based aids to navigation.

Most popular related searches

solar photovoltaic module

photovoltaic module

solar photovoltaic

silicon solar cell

crystalline solar cell

photovoltaic power

photovoltaic power generation

KL Solar experience shows in every aspect of this module’s construction and materials
Anodized aluminum frame offers required strength and allows for quick and easy installation on standard array structures.
70 Crystalline silicon solar cells in series for 24V type with by pass diodes installed.
Modules are laminated in toughened low iron content PV grade glass – Ethyl Vinyl Acetate films – PV module back sheet.
Optimized lamination process parameters ensure a stable laminate. Junction Box with PG Cable glands and bypass diodes are standard in all modules.
Each module is flash tested in a Sun simulator to ensure conformity to specification.
