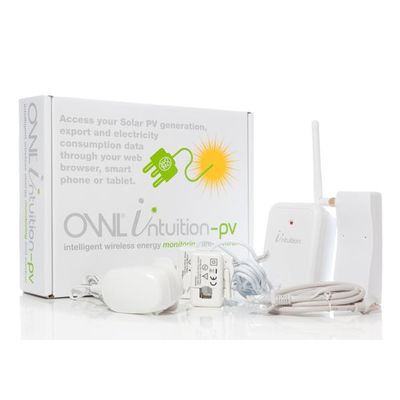

IntuitionModel pv - Solar PV Monitoring System

SHARE

Product Features: Allows monitoring of the PV generation, export and overall consumption of a property with solar panels. Intuition online dashboard gives you access wherever you go, as long as you have internet access. Android and i-Phone apps can give you access on-the-go. Shows live readings to 12 second intervals, and a historical account of the above; also telling you when you`ve improved your usage habits or your solar panels are performing better. User configurable tariff settings allow the unit to calculate what you`ve spent over the course of a day, week, and month. FITS settings allow you to see the tangible impact your solar panels are having on your bills. Provides graphs showing both historical and peak values, allowing you to identify when your solar panels have been generating the most energy - and therefore the best times to use power in a day.

Most popular related searches
  • Operating frequency:
  • Transmitter - 433MHz
  • Network OWL Gateway – 433MHz and 868MHz
  • Operating range up to 30m
  • 12 second refresh rate (Electricity consumption data)
  • Transmitter battery life > 14 months
  • Sensor suitable to monitor cables rated up to 71A
  • Storage conditions: -25°C to +65°C
  • Relative humidity: 25% to 95% non-condensing
  • Operating temperature: 0°C to 40°C
  • Ingress protection: IP30
Standards Compliance
  • IEC 61010-1:2001(2nd Edition) / EN 61010-1:2001(2nd Edition)
  • ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
  • ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
  • R&TTE - WEEE Directive, RoHS, Battery Directive

Includes
  • Network OWL Gateway with external antenna
  • Plug top power supply – 240V UK
  • Ethernet cable
  • 3 channel Transmitter unit
  • 2 x standard Sensor clamp (< 10mm cable, < 71A)
  • 3 x AA alkaline battery
  • Installation /User Manual
Options
  • Large Sensor clamp (> 17mm cable, < 200A)
