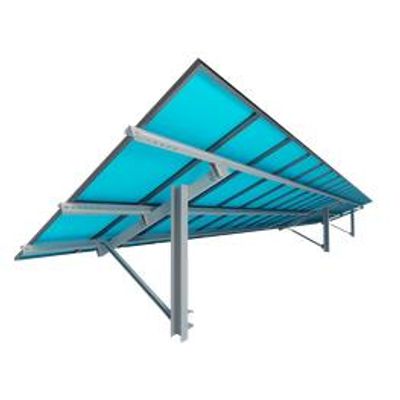

Titan - Model 3 -Solar Racking System

• Engineering: ASCE 7-10/7-16/CPP Wind Tunnel Tested
• Grounding: Fully Integrated UL2703
• Racking Coating: Galvanized; G90
• Foundation: C-Pile
• Pile Coating: G235
• Tilt Angles: 5°-35° Options
• Wind Loading: Up to 165mph
• Snow Loading: Up to 100psf
• Mounting Orientation: 2-High Portrait
• Warranty: 25 Years

• Quick Install: Simple Design that is quickly Mastered!
• Shallow Helical Anchors: Driven 36 inches in ground rapidly with our automated dual anchor drivers.
• High Ground Clearance: 31 inch standard front lip height for low maintenance
• APA Quick Clips: The New APA Quick Clips are designed for quick module installation.
• Quick Bracing: APA uses stainless steel aircraft cabling to provide rock solid rigidity to our 4-post design hardware.
• Foundation Options: Helical Anchors can be used on larger projects and post can be installed with concrete for small projects.
• Installer Friendly: The APA Rail-to-Rail design accommodates post location variability. The cross bracing clamp easily accommodates all variability. Small tilt bracket accommodates +/- 1 inch for post heights.
• Racking Grounding: Racking is all self grounded. Lugs provided for end of row.
• Interlocking: Rows can be constructed to any desired length.

C-Pile

TITAN comes standard with heavy gauge C-piles that provide a cost-effective solution while maintaining the strength of a driven I-beam. C-piles provide benefits such as additional holes for adjust-ability, heavier galvanized coatings and shorter lead times.

3-Rail Design

The 3-rail design is an excellent solution for bifacial modules with low backside shading. With a reduced part count, integrated grounding and cable management, and rapid module installation thanks to the gravity clip assembly, TITAN is preferred by installers
