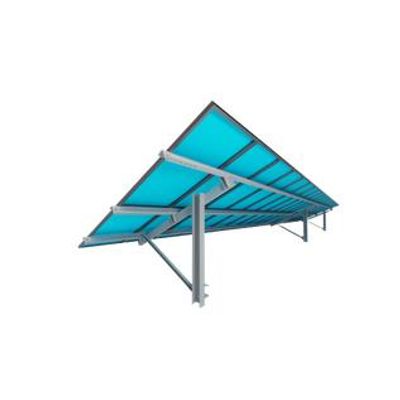

Titan First Solar - Model 6 - Solar Racking System
TITAN’s unique asymmetrical design and innovative features allow for flexibility in the field while streamlining the install process. The 3-rail design is an excellent solution for First Solar Series 6 modules. With a reduced part count, integrated grounding and cable management, and rapid module installation thanks to the gravity clip assembly, TITAN is preferred by installers.
Most popular related searches
- Engineering: ASCE 7-10 / CPP Wind Tunnel Tested
- Grounding: Fully Integrated UL2703
- Racking Coating: Galvanized; G90
- Foundation: C-Pile or Dual Ground Screw
- Pile Coating: G235
- Tilt Angles: 5°-35° Options
- Wind Loading: Up to 165mph
- Snow Loading: Up to 100psf
- Mounting Orientation: 2-High Portrait
- Warranty: 25 Years
- Available with either C-Pile or Dual Ground Screw foundations.
- Specifically designed gravity clip assembly with integrated grounding for First Solar Series 6 modules.
- Asymmetrical 3-Rail design reduces East-West rails by 25%, lowering the overall part count per megawatt.
- Looking for First Solar Series 4? Check out our Advanced Modular system.
Series 4
Pair the First Solar Series 4 module with our Advanced Modular system in a 6-high landscape design. Available with helical, ground screw or ballast foundation options.
Series 6
Pair the First Solar Series 6 module with either the heavy gauge C-Pile or dual ground screw, and find the ideal solution with TITAN.
