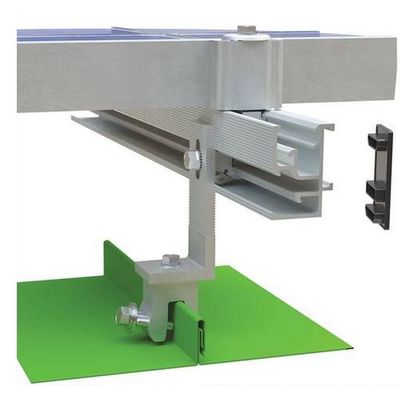

Solar Snap - Solar Racking System for Snap Lock Standing Seam Metal Roofs
Snap fit provides fast & easy installation. One of the strongest racking systems on the market. Rigorous 3rd party testing ensures quality & performance. Adjustable height and width fits multiple applications. Serrated hex nut locks tight and prevents back out. Sold in 168” (14’) lengths. Custom sizes available upon request. Mounting brackets included!. Tested to UL 2703 and to withstand up to Cat 5 winds (contact engineering for specific roof application). Anodizing upon request. Assembly includes Snap Anchor, Rail, Connector Plate and End Cap. L-Foot assembly, Grounding Stud and Clamps sold separately.
A2®N™ Non-Penetrating Solar Mounting Clamp
Designed for fast installation on 1.0” to 1.5” high nail base profiles and some selected snap-lock panel styles. This product is a larger version of our flagship A2® product. The product comes pre-drilled for attaching our Color Snap® or Rail type snow retention system. It’s compatible with our patented Solar-Kit or L-Foot for attaching directly to a racking system. All AceClamps are fully-assembled at the factory, ready to install out of the box.
- UL 2703 Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels
- UL 467 Grounding and Bonding Equipment
- Pre-assembled clamp allows for easy installation
- Non-penetrating sliding pin design does not damage the panel
- Available for one, two or three-hole brackets
- Engineered for 1.5” snap-lock SSMR seams
- Aircraft quality aluminum
- All stainless-steel hardware
- Installs in half the time of competitive products*
