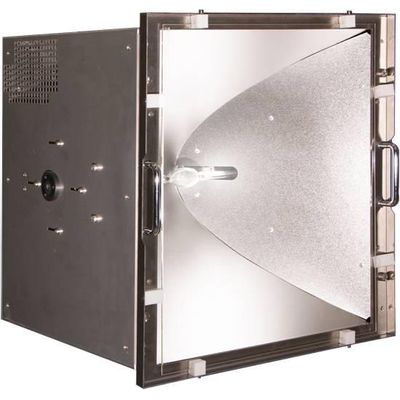

SolarConstant - Model MHG 4000/2500 - Solar Simulation Luminaires
A key to the success of solar environmental testing is the quality of the solar simulation itself. A close spectral match to natural sunlight is critical for accurate reproduction of test conditions. The Atlas SolarConstant luminaire offers high irradiance efficiency and superior spatial irradiance uniformity over the target area. Atlas SolarConstant MHG 4000/2500 are specially designed large luminaires for solar simulation systems.
Most popular related searches
solar simulation
solar simulation equipment
photovoltaic module testing
custom solar
photovoltaic module
solar photovoltaic module
photovoltaic testing
photovoltaic module monitoring
solar module testing
solar photovoltaic testing
- Spectrally measured 4000 W / 2500 W MHG lamps
- Optical filters for outdoor or indoor window-glass filtered solar conditions
- Wide, symmetric beam angle for high-uniformity solutions
- Modular design for customized systems of any array size
- Lamp: MHG 4000/2500 W
- Spectrum: Global radiation similar CIE 85 (Tab. 4)
- Outdoor Filter: UV cut-on ca. 290 nm
- Indoor Filter: UV cut-on ca. 320 nm
- Average lamp lifetime: 750 h / 1500 ignitions
- Dimensions (W x H x D): 510 mm x 430 mm x 500 mm
- Weight: 24 kg
SolarConstant 4000/2500 are typically used inside solar environmental walk-in and drive-in chambers for automotive applications, solar stress chambers for electronics, and for solar simulators for PV module testing.
