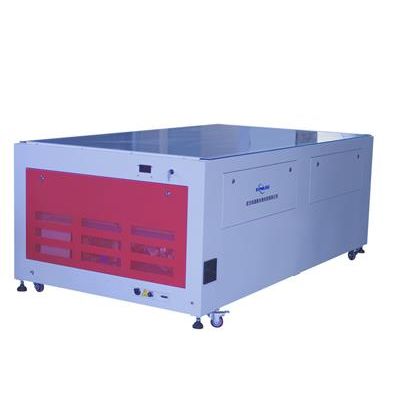

Solar Sunrise - Model SMT-2A -Solar Simulator
Electric performance test and on file for high efficiency or other types solar modules.
Most popular related searches
- Class A AM1.5G irradiation spectrum;
- Pneumatic bumper pin-contact, Pin-contact, on the sunny side and planer-contact on the rear side;
- 4-strand testing mode and 14-byte 4-channel high-speed synchronous acquisition;
- 10 preferences on display and testing data illustration in terms of sheets and curves;
- Irradiance and temperature self-compensating;
- Vocal test reporting and screen counter for flashes;
- 24/7 tools uptime and 100,000 flashes for life-time of Xenon Lamp;
- Ingenious IP;
- High stability;
- Class A spectrum, Uniformity of light intensity, Stability of irradiation;
- Applicable to all types solar module or min solar module;
- Items : SMT-2A
- Light Intensity : 1000W/m2 ( 700-1200W/m2 continuous adjustable)
- Non-uniformity of Intensity : <3%
- Temporal Instability : STI<2%
- Temporal Instability : LTI<2%
- Consistency of Testing : <1%
- Pulse Width of Single Flash : 10ms
- Effective Testing Area : 2000mm" 1000mm
- Measuring Voltage : 0-100V (resolution 1mV)
- Measuring Current : 0-20A (resolution 1 mA)
- Tested Electric Performances : Isc* VoCx PmaXv Vm, Irru FFV EFFN Tempx Rsv Rsh
- Power Supply : AC220V/50HZ/2KVA
