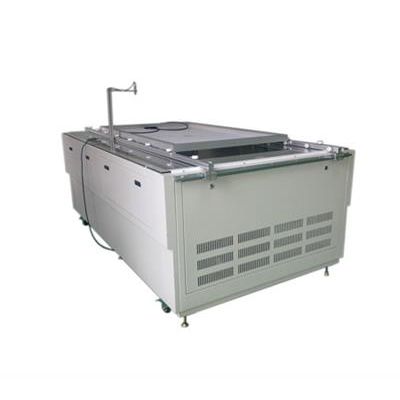

Solar Sunrise - Model SMT-3A100 -Solar Simulator

FromWuhan Solar Sunrise Photoelectric Technology Co., Ltd

SHARE

Electric performance test and record for high efficiency or other types solar modules.

Most popular related searches

solar simulation

Class A AM1.5G irradiation spectrum;
Pneumatic bumper pin-contact, Pin-contact, on the sunny side and planer-contact on the rear side;
4-strand testing mode and 14-byte 4-channel high-speed synchronous acquisition;
10 preferences on display and testing data illustration in terms of sheets and curves;
Irradiance and temperature self-compensating;
Vocal test reporting and screen counter for flashes;
24/7 tools uptime and 10,000 flashes for life-time of Xenon Lamp;

Ingenious IP;
Very long flash pulse;
10~100ms CW;
Adopt the technology of constant light.
High stability;
Class A spectrum, Uniformity of light intensity, Stability of irradiation;
Applicable to all types solar module or min solar module;

Items : SMT-3A100
Lamp Spectrum : IEC60904-9AM1.5[ClassA]
Light Intensity : 200 - 1200W/M2 continuous adjustable
Non-uniformity of Intensity : <2% [Class A]
Temporal Instability : STI<0.5% [Class A]
Temporal Instability : LTI<2% [Class A]
Consistency of Testing : <0.5%
Pulse Width of Single Flash : 10ms - 100ms continuous adjustable
Effective Testing Area : 2000mm* 1100mm
Measuring Voltage : 0-100V (resolution 1mV)
Measuring Current : 0-20A (resolution 1mA)
Tested Parameters : IsCv Voc* PmaXx Vrru liru FFS EFFV Tempv Rsv Rsh
Power Supply : AC220V/50HZ/2KVA
