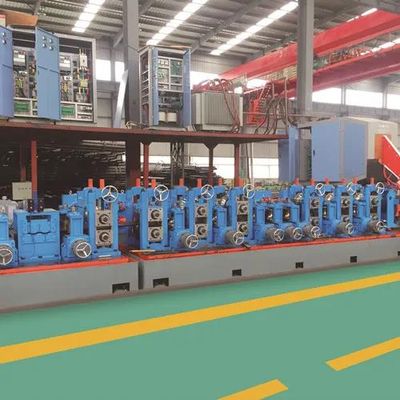

Teneng - Model GI -Solar Square Pipe Production Line Machine
The mill is intended for manufacturing round pipe of Φ60mm-Φ165mm with thickness of 2.0mm–6.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round, square or rectangular pipe.
- Used to produce galvanized steel square and rectangle pipe, this kinds of pipe can used in solar energy plate.
- Round pipe size: Min. Φ76mm, Max. Φ165mm
- Square & rect. pipe: Min.60X60mm, Max.130X130mm
The technical flow of the production line:
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine
Steel Pipe Specification
- Round Pipe diameter: Φ60 –Φ165mm
- Pipe Thickness: 2.0 – 6.0mm
- Square and rectangle pipe: 50X50mm –130X130mm
- Pipe Thickness: 2.0 – 5.0mm
- Pipe Length: 6-12m
- Length Tolerance: 0-6mm
Steel Tape Specification
- Material: Carbon steel (δb≤500Mpa, δs≤235Mpa)
- Inner diameter: Φ600-Φ760mm
- Outer diameter: Φmax=1800mm
- Strip steel width: 200mm-520mm
- Strip steel thickness: 2.0mm-6.0mm
- The maximum weight: 6.0 tons
- Electric installed capacity: appro.800KW
- Line Speed: 20-60m/min
