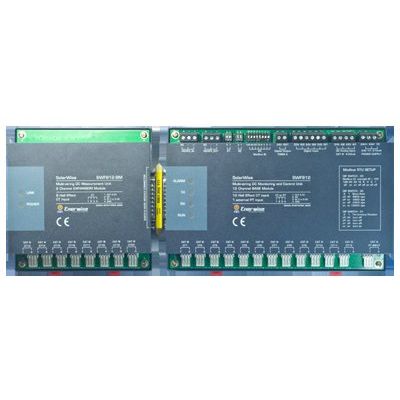

Model SWF812 - Solar String Monitor Device
FromEnerwise
SWF812 is the entry level all-in-one monitoring and control device designed specifically for solar energy generation distribution equipment requirements. The complete product portfolio consistently assures our customers have the best returns on the solar investments, with technologies like high efficiency inverters and remote control devices at the Array Box levels. We are working towards giving you a total solution.
Most popular related searches
string combiner box
solar energy generator
solar combiner box
string current
string monitoring
solar energy
solar monitoring system
solar energy system
solar generator
energy distribution
Hardware Specifications
- 8-40 String Measurement
- Hall Effect CT
- Measures 10A to 300A DC
- Built-in VT 1200VDC
- 2 x AI, 3 x DI
- -20C to 70C Operating Temp
- Operates on 24VDC or 1000VDC from string power
- Measures V, I, Iavg, Performance %, kW, kWh, Fuse Blown, SPD Status, Disconnector, Temp, Irradiation
- 50+ customizable alarms
- Modbus RS485
- Optional ZigBee wireless
Enhance your combiner box with this unique 8-40 string measurement unit with built-in FUSE blown detection, string PR calculation, string current vs. average comparison, cumulative kWh energy calculation per string, combiner box status detection and more!
