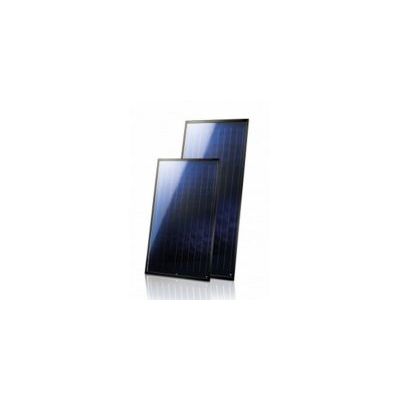

SOLARFOCUS - Model SunnyLine -Solar Thermal Collectors

FromSOLARFOCUS GmbH

SHARE

Supply your domestic hot water and heating requirements with the SunnyLine solar thermal collector. Available in 2 sizes to suit a wide variety of properties, these slim line solar panels include a 10 year guarantee for longevity. Reduce your energy costs and improve your home`s efficiency with SunnyLine solar thermal collectors!

Most popular related searches

solar thermal collector

solar collector

safety solar glass

domestic hot water

solar energy system

Suitable for a wide range of applications

For vertical or horizontal installation
10-year guarantee
Large format: 2,400 x 1,155 x 85 mm, aperture area 2.5 m²

No Plastic – No wood - No rubber seals

Why the structure of the collector should be important to you: because environmental influences such as wind, rain, dirt, UV radiation, snow loads and extreme variations in temperature are active on the collector over a period of decades.

Collector Tray - the `foundation`

The welded tight aluminium tank forms the “foundation”.
The high quality manufacturing process protects the inside of the collector for decades.

Absorber – the `heart` of the collector

The highly selective solid surfaced absorber (blue-line) stands out for its level of solar absorption of approx. 95% and level of heat emission of approx. 5%.
The absorber unit which is fitted so it floats (ultrasound-welded blue-line absorber strip and copper heat-carrying pipe) guarantees the maximum energy useage.

The Solar Safety Glass

4 mm of solar safety glass with prismatic structure and low lead content
Maximum transparency to light. Impact and hailstone resistant.

Special Seal – Robot-produced

Special UV-protection seal with permanent elasticity.
Joins the tray, glass and beaded edge. Anti-diffusion. Prevents penetration of humidity and dirt.

Aluminium Glass Holding Strip

Special anodised aluminium profile.
No rubber seals, with a UV-radiation and weather resistant aluminium profile that efficiently protects the glass edges.
Guarantees a long-lasting join between the tray and the glass.

Surface-sealing Joints

1/2” external thread with butt joint.
The surface joints located on the inside and outside of the tray are screwed down parallel to the casing with brass bolts, in such a way that they hermetically seal the tray.
No rubber or plastic seals that wear out in outdoor conditions.
Single connection of the collector pipes.

Rear Wall Insulation

50 mm of mineral wool with low binding content.
As a result of the low proportion of binding agents that exist in the mineral wool insulation releases almost “zero gases”.

Ring-groove Ventilation

The ring-groove ventilation is located on the collector’s distribution pipe.
Makes it easy to ventilate solar collectors connected in series.

A picture is worth a thousand words

Schematic diagram of the Sunnyline collector

Collector tray - the `foundation`
Absorber – the `heart` of the collector
Solar safety glass
Special seal - robot produced
Aluminium glass holding strip
Surface sealing joints
Rear wall insulation
Ring-groove ventilation
