BOFU - Solar Tracking Carport System

FromBOFU
SHARE
The solar tracking carport is an innovative addition to conventional carports, integrating advanced solar tracking technology. This system incorporates an astronomical algorithm controller, which accurately calculates the sun's position using geographical coordinates, allowing the solar panels to pivot with a slewing drive within a ±30° range. This dynamic tracking ensures maximum sunlight exposure, thereby enhancing the carport's power generating efficiency. The carport's design utilizes high strength carbon steel struts and purlins, ensuring robustness against wind and load forces, essential for structural stability. Purlins are engineered for optimal stress distribution, crucial for supporting the solar panels. Additionally, the carport features a waterproof sink for effective rainwater drainage, and uses plastic self-lubricating bearings to facilitate seamless rotation of components, reducing maintenance needs. BOFU's solar tracking carport exemplifies a blend of precision engineering and sustainable power solutions.
Most popular related searches
solar tracking
solar carport
solar panel
solar tracking system
power generation
solar monitoring system
solar tracker
advanced integrated solar technology
carbonization
solar panel tracking

We provide the design, customized manufacture, logistics, and one-stop purchasing of solar trackers, meet requirements of different clients.

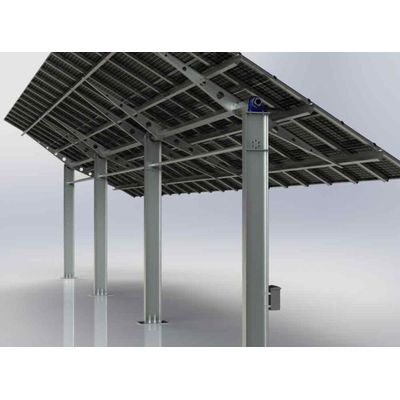

The solar tracking carport added solar tracker on the ordinary fixed carport, it equipped with an astronomical algorithm controller, which determines the real-time position of the sun based on the longitude, latitude, then the beam and solar panels is driven by slewing drive to rotate with a rotation angle of ± 30 °, allowing real-time tracking of the sun’s position, ensuring that sunlight always shines at the most angle on the solar panel, achieving maximum power generation efficiency.

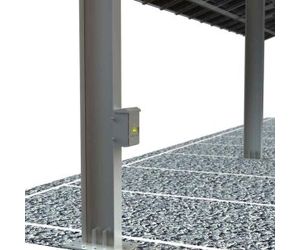

The strut is the foundation of the entire carport and must be strong enough to support the carport.BOFU carport strut is made of high strength large size carbon steel to ensure the wind resistance and load bearing of the carport and ensure the stability of the carport.

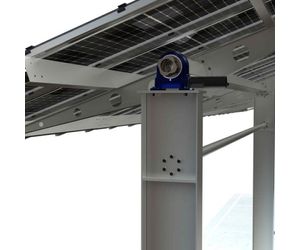

The solar tracking carport was driven by high toque slewing drive, which will bring solar panels rotate to track sun timely, keep sunlight always shining at the most angle on the panel at daytime, improve power generation efficiently.

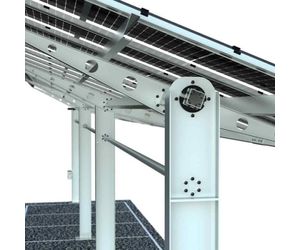

The purlins follows the rotation and supports the top solar panel, so its strength must be guaranteed. BOFU purlins use high strength carbon steel or aluminum alloy as raw materials, reasonable design structure makes all directions of purlins evenly stressed, whether it is on rotation angle or horizon, it can withstand enough pressure to ensure the safety of solar panels on the roof of the carport.

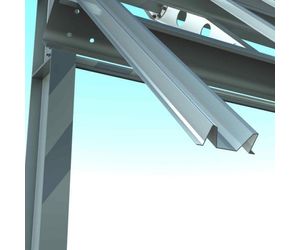

The M-shaped waterproof sink using for waterproofs and drains, reducing water accumulation in the carport in rainy days.

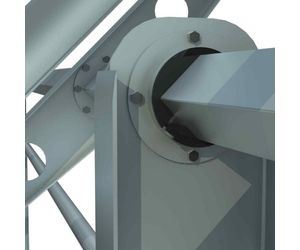

Plastic self lubricate bearings not only ensure smooth rotation of the purlins, but also make maintenance and replacement easier.



ITEM: VALUE
Products Name: Solar Tracking Carport
Brand: BOFU
Original: China
Wind Resistance: 35m/s
Snow Resistance: 1.6KN/sqm
Service Life: ＞25 Years
Features: Pitch Rotate
Drive: Slewing Drive
Voltage: 24V
Daily Power Consumption: ≤0.5kwh
Horizon Rotate Range: ±30°
Material: Q345/Q235
Surface Treatment: Hot Dip Galvanizing
Tracking Method: Astronomical Algorithm+Time
Foundation: Concrete Foundation
