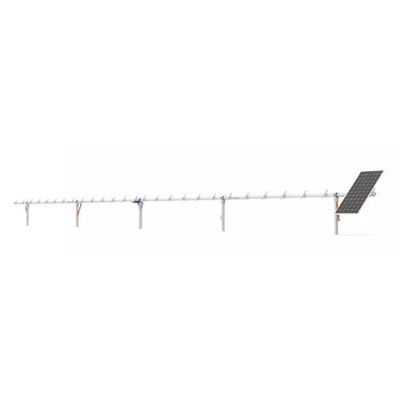

HUAYUE Tracker - Model HYP-1-26PV-144(156/132)-IR-SD - Solar Tracking Controller Single Axis
Smart Tracking Algorithm (STA): The bifacial irradiation model comprehensively considers 12 key factors affecting power generation. Multi-dimensional analysis of module power generation performance to ensure optimal power generation throughout the entire cycle. Reduce bracket rotation and effectively extend the service life of the motor and bracket.
Grid Area: ≈ 68 ㎡(74㎡/71㎡)
Size of Solar Panel: 2279mm x 1134mm（156）
Main Material: ZAM(S440~S550)/Q355B/Q235B
Fastener Material: 304 (A2-70) Flange Bolt + Flange Nut
North-South Slope: <20%
Azimuth Tracking Range (°): -50°~+50°/-60°~+60°(Customizable)
Snow Load: 0.8~1.1 KN/m
Protection Wind Speed: Have(17~22 m/s)
Survival Wind Speed: 37~60 m/s (ASCE7-10, Can be Customized)
Control Algorithm: Astronomical Algorithm + Position Sensor Closed Loop Control
Protection Level: IP65
Power Supply Mode: AC100~305V power supply
String DC250~1500V power supply: Local Network Communication
LoRa /Zigbee: Remote Network Communication
Optional Wired: RS485/0ptical fiber/Power line carrier: Wireless: 4G/WiFi
Night Return Mode: Have
Cloudy Mode: Optional
Backtracking Algorithm: Have (Al algorithm can be upgraded)
Heavy Rain Cleaning Mode: Optional
SCADA: Have (Functions and interface can be customized)
Position Protection Mode: Sensor Protection + Software Protection
Snow Removal Mode: Optional
Cleaning Robot: Customizable
System Upgrade: Remote One-Click Upgrade + Local Upgrade
NCU Visual Operation: Have
Tracking Cycle: Can be Set Up
Operating Temperature(C): Default On -30℃~+70℃(Customizable)
- Multiple technologies intelligently identify real terrain
- Automated training and learning, no human participation required
- Secondary precise optimization of backtracking angle based on the power generation characteristics of module shading.
