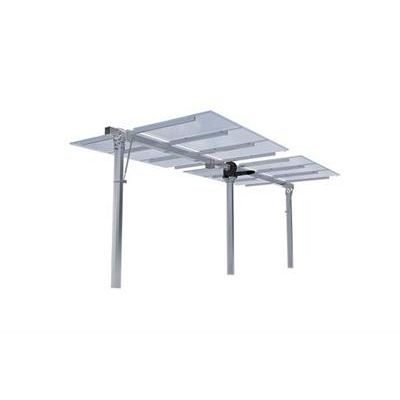

PowerFit - Model Plus -Solar Tracking System
The third-generation PowerFit (advanced model) is cost-effective. It is driven by horizontal single axis and arranged in 2*N vertical rows. It can adapt to PERC double-sided solar modules. Fitted with the inverter provided by Powerway, it forms a horizontal single axis intelligent tracking system, whose power generation capacity is 24% - 43% higher than conventional fixed rack + single-sided modules.
Most popular related searches
solar tracking system
solar tracking
axis solar tracker
solar module
power generation
PERC solar module
PERC solar
inverter
- Category: PowerFit-Plus
- Tracking Type: Single-axis (2XN vertical row)
- Capacity (KW/set): 25-36 KW
- Sets per MW: 27-40 sets
- Power Supply : L+N 90-260 VAC (wide voltage input)
- DIM of E-W and N-S Arrays : Depends on module specification
- and layout arrangement
- Module Type: Monecrystalline, polycrystalline,
- thin-film, bifacial
- Area: 1.13~1.6 ha/MW
- Tracking Rang of Motion: ±45°standard(±60°optional)
- Working Wind Speed: Up to18m/s(3s) ASCE 7-05
- Survival Wind Speed: Up to 45m/s(3s) ASCE 7-05
- Module per array: ≤90 pieces
- Materials: HDG steel and Mac Steel
