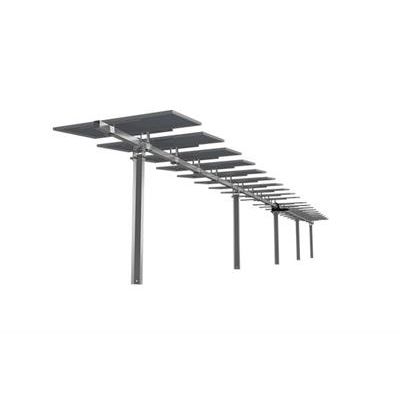

PowerFit - Model Sunmax - Solar Tracking System
The third-generation PowerFit (high-end model) is of excellent performance. It is driven by horizontal single axis and arranged in 1*N vertical row. It has a north-south inclination design and can adapt to various solar modules. The unique inclination design meets solar incidence angles in different latitudes. PowerFit-SunMax is a product integrating the essence of Powerway tracking system.
Most popular related searches
- Category: PowerFit-Sunmax
- Tracking Type: Single-axis (with inclination)
- Capacity (KW/set): 25-36 KW
- Sets per MW: 27-40 sets
- Power Supply : L+N 90-260 VAC (wide voltage input)
- DIM of E-W and N-S Arrays : Depends on module specification
- and layout arrangement
- Module Type: Monecrystalline, polycrystalline,
- thin-film, bifacial
- Area: 1.4~2 ha/MW
- Tracking Rang of Motion: ±45°standard(±60°optional)
- Working Wind Speed: Up to18m/s(3s) ASCE 7-05
- Survival Wind Speed: Up to 45m/s(3s) ASCE 7-05
- Module per array: ≤90 pieces
- Materials: HDG steel and Mac Steel
