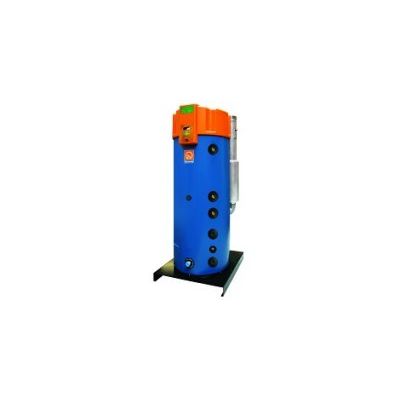

Hamworthy - Model Dorchester DR-TC -Solar Water Heater
The well-proven Hamworthy Dorchester range of direct-fired water heaters has further evolved to include the latest Dorchester DR-TC range of combined solar and gas –powered water heaters for duty Domestic Hot Water (DHW) production. The Dorchester DR-TC is based around the Dorchester DR-FC Evo concept, with an efficient down-firing condensing burner and coiled heat exchanger but with the addition of dedicated solar coil for use with a solar circuit. Dorchester DR-TC water heaters are ideal where the potable DHW system needs to be separate from the boiler heating load, and/or where there is insufficient space for a separate boiler and calorifier.
The Dorchester DR-TC can be used with Trigon solar collectors to provide a compact yet efficient system, with all the necessary controls supplied to prioritise the use of solar energy:
- Integral solar control system to prioritise the use of solar energy where possible
- Space saving in the plant room with no need for additional heat input
- Operates independently from heating circuit giving financial savings from running space heating and hot water systems separately (summer load)
The new Hamworthy solar offer has been developed to deliver intelligent, sustainable solutions with simple design and ease of installation and maintenance for both new build and retrofit.
Solar water heater with integrated condensing gas burner
- Solar-prioritised to save fuel
- Burner controllable for max condensing operation
- Pre-programmed schemes simplify set-up
- Centralised intelligent controls
- Separate temperature stat settings for solar and gas circuits to allow greater solar contribution
- Comprehensive programmable 3-period/day timer
- Modulation to 15% for earlier/longer solar contribution
- High efficiency, 96% gross
- Low NOx (class 5) emissions
- Ultra-quiet operation (45 dB(A) @2m from roof duct)
- Reduced risk of Legionella
- Qualified for Energy Technology List
