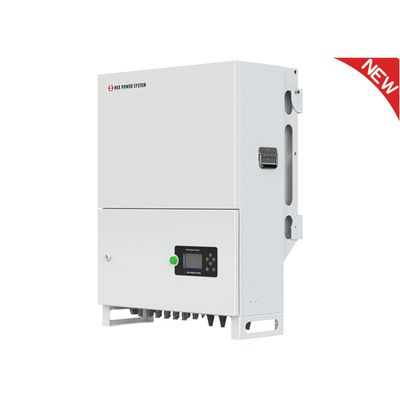

Model H3100WC - Solarlink Inverter System

Output Control Mode: Grid-connected(Transformerless), Input Control Mode: MPPT(Maximum Power point Tracking), Vdc Max: DC 1000V, Max. efficiency: 98% above, MPP range: DC 580 ~ 800V, Voltage range: DC 570 ~ 1000V, Ipv MAX: 181A, Capacity: 100kW, Rated Voltage: 380V AC(+10% / -12%), Audible Noise: < 70dB (1M Above), Frequency rating: 60Hz(+0.5Hz/-0.7Hz), THD: < Total 3%, < 2% Individual, Power factor: Over 0.99 (at rated load), Overload: 105%, Vdc Min: DC 570V, European efficiency: 98% above, Cooling: Forced air Cooling, Display: Graphic LCD, Interface: RS-422, LAN, Web Monitoring, Bluetooth, WiFi, Operating temperature: -20°C ~ 60°C (50°C , Enclosure IP: IP65, Himidity: 0 ~ 95%, Dimensions (W x D x H mm): 700 X 380 X 980, Weight: 85kg
