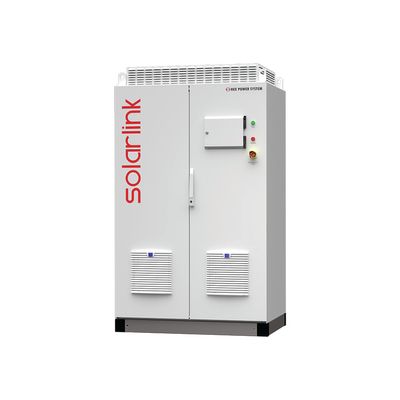

Model H3500LOD (380V) - Solarlink Inverter System

Output Control Mode: Grid-connected(Transformerless), Input Control Mode: MPPT(Maximum Power point Tracking), Vdc Max: DC 1000V, Max. efficiency: 98% above, MPP range: DC 580~850V, Voltage range: DC 580 ~ 1050V, Ipv MAX: 906A, Capacity: 500kW, Rated Voltage: 380V AC(+10% / -12%), Audible Noise: < 75dB (1M Above), Frequency rating: 60Hz(+0.5Hz/-0.7Hz), THD: < Total 5%, < 3% Individual, Power factor: Over 0.99 (at rated load), Overload: 105%, Vdc Min: DC 580V, European efficiency: 98% above, Cooling: Forced air Cooling, Display: HMI (7inch Touch LCD), Interface: RS-232/422 Serial Connect, Web Monitoring(Option), Operating temperature: -20°C ~ 50°C, Enclosure IP: IP44, Outdoor, Himidity: 0 ~ 95%, Dimensions (W x D x H mm): 1,200X800X2,050, Weight: 900k
