Sole S.A.
Sole Climasol - Vacuum Tubes Solar Collectors
FromSole S.A.

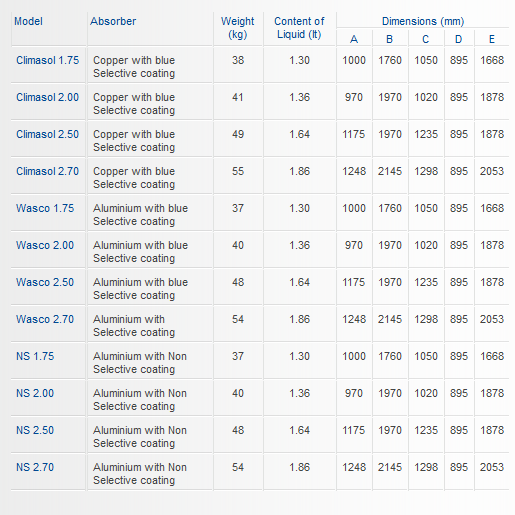

A great variety of solar collectors by the leading manufacturer and supplier of flat plate collectors. On this page you are provided with a table and information including specifications and technical data of the SOLE S.A. flat plate collectors.
Most popular related searches
solar collector
solar water heating
tube solar collector
solar water
vacuum-tube collector
vacuum solar collector
solar water circulation
solar collector tube
circulating heater
Absorber: Copper tubes and copper or aluminium full face fin with selective or non selective coating.
Pressure test: 9 bar
Pressure max: 6 bar
Insulation:
- Back: 40 mm rock wool (50kg/m3)
- Side: 20 mm glass wool (30kg/m3)
Casing: Aluminium profile, powder coated, free of bolts and rivets.
Glass tempered: Tempered, low iron prismatic glass 4 mm.
Sealing: EPDM Rubber.
Connector: Compression union 22x22
Recommended Flow: 40 ltr/h/m2
