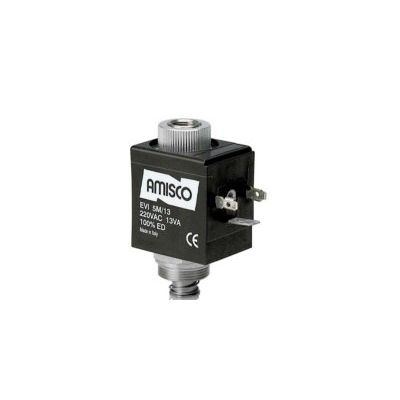

AMISCO - Model EVI 5S13 - Solenoid System
The EVI5 S13 system by AMISCO includes a wide range of solenoid operators designed for pneumatic valves. All solenoids of this system have the guide tube with a diameter of 13 mm and the hexagonal plunger CH 11. The system is designed for use with air.
The coil is available with different electrical terminations. Types, power and other characteristics are described in the following pages. All coils feature:
- heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
- class H wire 200°C according to IEC 60317-13
- built-in magnetic yoke made by low carbon iron
- encapsulation with high quality specially designed glass filled nylon.
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 (with connector). The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, please, take contact with Amisco.
OPERATOR
Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.
The guide tube is made available both by brass and by stainless steel. The plunger is normally equipped with NBR rubber seals. Other materials like FKM are available upon request. The armature assembly is designed for more than 10 million cycles.
COMPLETE SOLENOID OPERATOR
The coil is fastened to the plungerguide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit. The armature assy is fixed to the valve body by means of a M20x1 thread. The suggested interface dimensions of the valve body are shown at side. Any change to the prescribed dimensions can modify the performances of the solenoid operator.
