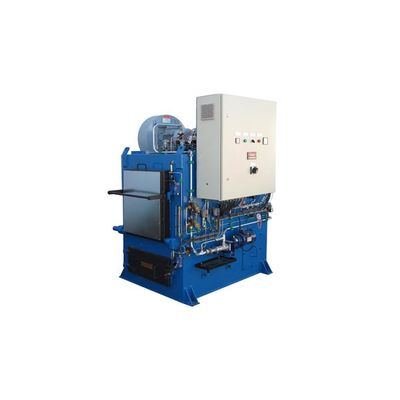

Atlas - Model 400 SL M -Solid and Liquid Waste Incinerator
The 400 SL M is the second most compact solution for burning solid and liquid waste with a high water content, (above 50%), suitable for offshore supply vessels and small merchant vessels, and where no waste sluice is required.
Most popular related searches
liquid waste incineration
waste incineration
solid waste incineration
sludge oil incineration
incineration
incinerator
sludge oil
combustion waste
solid-liquid incinerator
liquid incinerator
- Combustion Capacity (kW) : 465
- Combustion Capacity (kcal/h) : 400.000
- Combustion Capacity Solid Waste (IMO waste specification) : 170 L/charge
- Combustion Capacity Liquid Waste (IMO standard is 20% water content)
- 42 l/h at 0% water content
- 53 l/h at 20% water content
- 84 l/h at 50% water content
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
