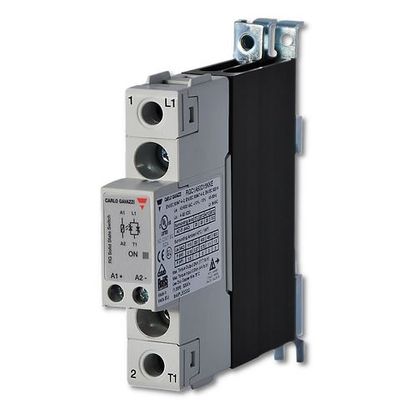

Carlo Gavazzi - Model RGC1A60D15KKE -Solid State Relay for DIN Mount

SHARE

The Carlo Gavazzi RGC1A60D15KKE is a compact solid state relay designed for DIN rail mounting. It supports switching of 20 amp loads at line voltages varying from 42Vac to 600Vac in environments up to 40°C. It features internal overvoltage protection and uses robust back-to-back SCRs for reliable power switching in diverse environments—be it residential, commercial, or industrial. The relay accepts control signals between 4Vdc and 32Vdc and is equipped with screw terminals and captive washers for both input and output, accommodating wire sizes from 12-18 AWG for inputs and 10-14 AWG for outputs. Its typical applications include motor control, resistive heating, and lighting systems. The relay adheres to standards such as UL508 for a 100 kA short circuit current rating and complies with EN/IEC60947-4-2 and EN/IEC62314. For detailed specifications, the product datasheet provides further insights.

Most popular related searches
solid state relay
overvoltage protection
lighting system
overvoltage
relay controller
  • Compact DIN mount 17.5mm solid-state relay with integral heat sink
  • 4-32Vdc Input
  • 20 Amp / 42-600Vac output @ 40°C
  • Zero-crossing output
  • Internal overvoltage protection
  • IP20 touch-safe housing
  • LED input status indicator
  • “Contactor” configuration with elevator screw terminals
  • 100 kA short circuit current rating according to UL508
  • Agency approvals: cULus, VDE, GL, EAC and CE
  • Design according to EN/IEC60947-4-2, EN/IEC60947-4-3, EN/IEC62314, UL508, CSA 22-2 No. 14-13

The Carlo Gavazzi RGC1A60D15KKE solid state relay is a compact, 17.5mm DIN rail mount solid state relay capable of switching 20 amp loads at line voltages between 42Vac and 600Vac in a 40°C ambient. Known for Quality and reliability, the Carlo Gavazzi RGC1A60D15KKE solid state relay incorporates internal overvoltage protection and utilizes rugged back-to-back SCRs to switch power to/from electrical loads, making them the ideal switching solution in residential, commercial or harsh industrial environments.

The input of the RGC1A60D15KKE can accept control signals from 4Vdc to 32Vdc.

The Carlo Gavazzi RGC1A60D15KKE DIN mount solid state relay utilizes screw terminals with captive washers for both the input and output terminals. The input terminals can accept bare / stranded wire from 12-18 AWG, while the output terminals can accept bare / stranded wire from 10-14 AWG. Specifications for alternative termination methods are available in the product datasheet.

Typical Carlo Gavazzi solid state relay applications include resistive heating control, motor control and some lighting control systems.

Additional Features and Benefits of the Carlo Gavazzi RGC1A60D15KKE

  • Compact 17.5mm x 98.5mm DIN mount solid state relay
  • Internal overvoltage protection
  • Contactor output terminal configuration (output terminals on opposite ends of the solid state relay)
  • 100kA UL508 short-circuit current rating (UL508 SCCR)
  • Designed for EMC immunity and reduced emissions
  • Agency approvals: cULus, VDE, GL, EAC and CE



Detailed specifications are available in the product datasheet. Please contact our support team at 800.879.7918 / support@hbcontrols.com if you have any questions, would like to discuss your specific application requirements in more detail or want to learn more about other Carlo Gavazzi solid state relay solutions available from HBControls.
