Soltec

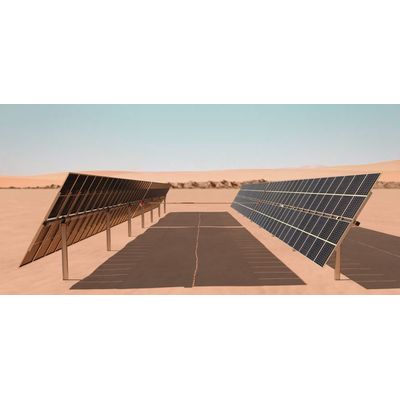

Soltec - Model SF 7 - Tandem Single Axis Solar Tracker
FromSoltec
SF7 Tandem combines the best of a 2-portrait tracker with the best of a 2-row tracker resulting in higher efficency, simplicity and reliability.
Most popular related searches
single axis solar tracker
axis solar tracker
surge protective device
surge protection
solar tracker
single axis solar tracker system
photovoltaic power
engine monitoring
Fewer parts, simpler tracker: Higher Efficiency
- Higher MW installation rate
- Easier and faster installation, similarly to the SF7
- Lower material cost, installation and reduced BOP costs
- Fewer components: 46% fewer piles, 60% fewer screw connections, 20% fewer parts-count than other 1P dual-row competitors
- Fewer parts: 50% fewer motors and 50% fewer Tracker Controllers than the conventional SF7
Same robustness and reliability
- Self-stow at high tilt angle
- SPD: Surge Protection Device
- TMS: Tracker Monitoring System
- Engineered with the innovative Dy-Wind design
- Independent aisle for less land use and better access
- 2 drives double torque-blocking capacity for a more safe and robust structure
Land Enabler
- Adaptability to slopes and boundaries
- Wide construction tolarances
Cost-effective with optimized installation and operation
- Near Field Communication (NFC) at tracker level and Full Wireless Network at plant level, provide robust and cost-effective communication and control operations
- Self-Powered with PV Series Power Supply 2.0, for lower cost-operational power supply
Accesible Maintenance and Face-2-Face
A Cardan shaft conveniently located at 1.8 m (5.9 feet) eases O&M and ensures system functionality under any weather or terrain circumstances.Face-2-Face positioning helps washing vehicles cover twice the array-area per vehicle pass, thus proportionately reducing the hours-per-MW washing rate
