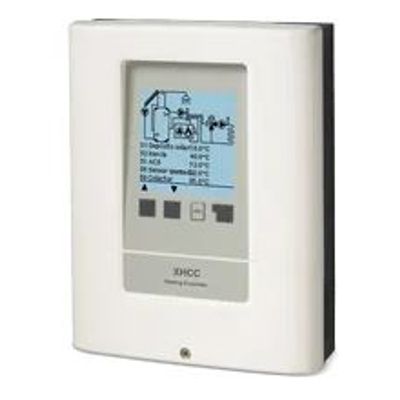

Sorel - Model XHCC - Heating Controller

Sorel - Model XHCC -Heating Controller

FromSorel GmbH Mikroelektronik

For flexible control of complex heating systems with various heat sources.

Most popular related searches

vacuum-tube collector

Temperature control class VI / 4%
Sensor inputs 17
of which for PT1000 Temperature sensors 11
of which for remote adjuster 2
of which for Direct Sensors VVX / VFS / RPS Temperature 2
of which for Direct Sensors VVX / VFS / RPS flow 2
Compatible room thermostat °CALEON / °CALEON Clima / RC20 / RC21
Relay outputs 230V 6
Relay output voltage-free 1
Outputs 0..10V or PWM signal (for modulating burner control) 4
24VDC output for external devices bis zu 6W
Number of applications 13
Extension of pre-defined systems
by selectable additional functions ✓
LEDs red/green for display of operating status ✓
Programmable thermostat times and functions per day 2×3
Comfort function for quick heating ✓
Heating circuit with mixer 0 – 2
Heating circuit without mixer 0 – 2
Domestic hot water function with operating times ✓
Legionella function via solar ✓
Legionella protecion via additional heating ✓
Cooling ✓
Setup wizard ✓
Solar-System protection ✓
Solar-Collector protection ✓
Buffer discharge protection ✓
Anti-freeze protection ✓
Seizing Protection ✓
Solar-Recooling ✓
Start logic for vacuum tube collectors ✓
Control program for self-dumping systems (drain-back) ✓
Function control and error memory with date and time ✓
Error memory and analysis with date and time ✓
Input for low energy tariff or PV overproduction (PV contact) ✓
Menu blocker ✓
CAN bus connection for SOREL Connect ✓
Data logging on microSD card ✓ (only on V2)
Ethernet connection ✓
Dimensions Height x Width x Depth in mm 228 x 180 x 53
Housing colour RAL 9003
Protection Class IP40
Mounting Hardware, Spare Fuse and User Manual ✓

Sorel - Model XHCC -Heating Controller
