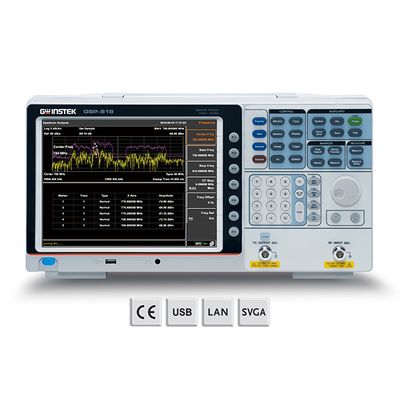

GW Instek - Model GSP-818 -Spectrum Analyzer
GSP-818 is a new general spectrum analyzer, which supports a frequency range of 1.8 GHz and provides testing requirements for RF products during the development/production phases. GSP-818 has a built-in 20dB amplifier and provides an adjustable range of resolution bandwidth (RBW) from 10Hz to 3MHz. In addition, it has the AM/FM signal demodulation function and the ACPR/OCBW/CHPW test functions to meet the requirements of general RF signal measurement.
Most popular related searches
- Frequency Range: 9kHz ~ 1.8GHz
- RBW: 10Hz ~ 3MHz, 10Hz ~ 500kHz in 1-10 steps
- Sensitivity: -148dBm/Hz Typical @PreAmp On
- Built-in AM/FM Demodulation
- Bandwidth Zoom function
- Measurement Function: ACPR/OCBW/CHPW, NdB Bandwidth, Freq. Counter, Noise Marker, Limit Line
- Built-in 20dB Preamplifier Standard
- Interface: Lan, USB
- Screen: 10.4" SVGA Output (800*600)
- Options: Tracking Generator, EMI Filter & Detector (via software keycode)
Standard Accessories
Power Cord, Calibration Certificate
CD (Including Quick Start Guide, User Manual, Programming Manual, PC Software)
Optional Accessories
GSP-81T1 Tracking Generator (via software keycode)
GSP-81E1 EMI Filter and EMI Detector (via software keycode)
