LICB - Model DCEVC-20240919-02 -Split DC EV Charger

FromChina LiCB AC DC EV Charger Co., Ltd

SHARE

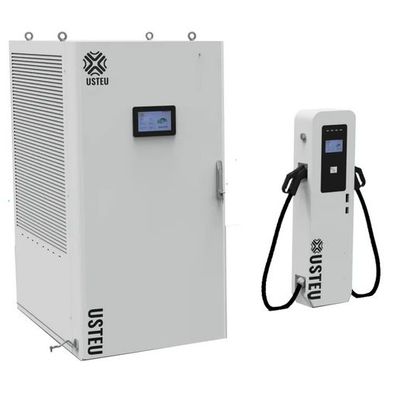

We offer high-performance split DC charging stacks with IP55 protection, ensuring durability in various conditions. These chargers deliver up to 480kW of power, with a maximum input voltage of 380V AC and a maximum output voltage of 1000V DC. Designed for efficiency, the stack supports a maximum output current of 480A and features a 1-in-8-out configuration, making it ideal for high-demand applications. Built for reliability and versatility, our charging stacks are perfect for large-scale EV charging infrastructure. As a leading charging stack manufacturer in China, we are committed to delivering innovative and high-quality solutions.

Most popular related searches

electric vehicle charging

power distribution

voltage regulation

voltage regulating

voltage regulator

low voltage power

distributive power

distributed power

Product Item: Split DC EV Charger
Rated Power: 480kW
Charging Terminals: 4
Charging Plug: 8
Power Distribution Method: 1 In 8 Out
Charging Operation Mode: Swipe, Touch Screen, APP
Rated Input Voltage: 380V AC
Rated Input Current: ≤760A
Rated Output Voltage: 1000V DC Max
Rated Output Current: 480A Max
Ambient Temperature: -30°C - 60°C
Low Voltage Auxiliary Power Supply: 12V DC
Voltage Regulation Accuracy: ≤±0.5%
Stabilization Accuracy: ≤±1%
Peak Efficiency: ≥95%
Power Factor: ≥0.99%
Display Media: Main cabinet 10-inch screen, charging terminal 7-inch screen
Dielectric Strength: ≥2500V AC
Insulation: ≥10MΩ
Communication Interface: NIC, 4G
Altitude: ≤2000m
Mainframe Cabinet Dimensions(W*H*D): 1830*1735*1000mm
Charging Terminal Dimensions(W*H*D): 1400*220*450mm

The central control unit utilizes an automotive-grade microcomputer chip.
Incorporates energy bus-type, fully intelligent power distribution technology.
Features intelligent flexible charging technology for optimal performance.
Coated with nano-paint, providing excellent durability and rust resistance.
