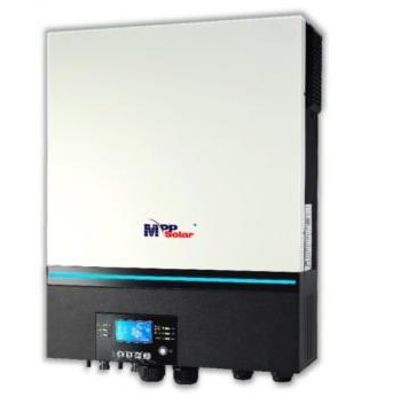

MPP - Model LV SERIES – LV6548V, LV6548 -Split Phase Hybrid Solar Inverter
FromMPP Solar Inc
The LV6548V , latest upgrade of PV to 390V from the LV6548, is the latest members to our 120V/240V SPLIT PHASE inverter family and retains UL1741 compliance (TUV certified) for US markets and CSA for Canada. Similar to the LV2424, the LV6548V/LV6548 is also a 120V output inverter alone however split phase output (120V/240V) can be configured by using minimum 2 or more units in parallel.
Most popular related searches
solar inverter
hybrid solar inverter
inverter
battery charger
solar charger
charge controller
hybrid solar
solar hybrid inverter
hybrid inverter
solar hybrid
Bearing same enclosure design as the MAX series, the LV6548V / LV6548 also inherit many of the same characteristics from the MAX series, with features as follows:
- high PV input Voc 250V / 390V* (*LV6548V only)
- batteryless operation (single unit mode only)
- parallel up to 6 units
- built-in WIFI transmitter
- built-in parallel kits
- Dual PV input
- BMS support (Pylontech, Weco, Soltaro)*
- Timer output & charging control
Attractive built-in RGB LED bars allow users to easily identify operation mode to users and additional display options can be programmed from the LCD menu.
- Max PV input up to 390V (LV6548V only)
- UL1741 / CSA compliant
- Customizable RGB LED setting to display operation mode
- High PV input up to 250V (Voc)
- Max 6.5KW / 48V pure sine wave output 120V
- Parallel support up to 6 units, in single phase (120V), split phase (120V/240V/208V) or 3-phase (208V).
- Built-in parallel kit
- Batteryless operation (single unit mode only)
- Built-in WIFI transmitter to monitor data on smartphones
- Timer control on AC output & charging
- Pylontech/Weco/Soltaro Lithium BMS support*
- Built-in genset starter dry contact
- Equalization Charge
- Detachable LCD remote display
- Built-in MPPT solar charger max 120A
- Built-in utility battery charger max 120A
- Comprehensive programming options
- Adjustable Bulk/Float charging voltage
- Indoor installation only
- Wide AC input range for bypass
- FREE monitoring software
