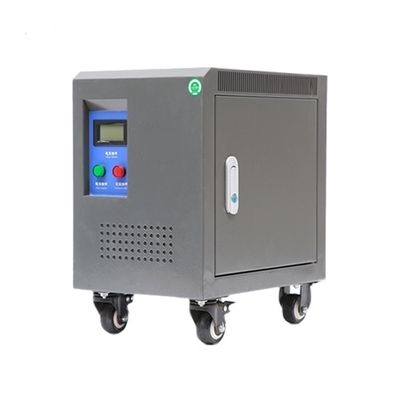

ATO - Model DGS - Split Phase Isolation Transformer

FromATO
SHARE

We design the split phase isolation transformers that are long-lasting, efficient, and give a hassle-free performance. We use perfectly standard raw materials for manufacturing. ATO is engaged to produce the high quality split phase isolation transformers with a capacity range of up to 30 KVA. Isolation transformers block transmission of the DC component in signals from one circuit to the other, but allow AC components in signals to pass. Also, our research and quality control teams put continuous efforts to use the latest technological solutions to give the best products. We provide quality isolation transformers to protect various sensitive and costly appliances used at houses, offices, hospitals, industries etc.

Most popular related searches
isolation transformer
transformer isolation
power distribution cabinet
circuit breaker
power distribution
power transformer
current transformer
transformer insulating
distributive power
distributed power
  1. Scientific and reasonable design, the voltage variation rate is controlled within 1-1.5%.
  2. Split phase isolation transformer is made of high quality new silicon steel sheet, which can effectively reduce iron loss and improve efficiency.
  3. The transformer is made of high temperature resistance and high quality wire, which greatly improves the efficiency.
  4. Class H insulation, high temperature resistant insulation material, improve the high pressure strength, prolong the service life.
  5. The isolation transformer has beautiful appearance design, large power density, small volume and high space utilization rate.

(The power transformer must be properly grounded in order to play a better role. We can carefully design and manufacture high quality transformers according to customer requirements.)

Split Phase Isolation Transformer in Hospital
The application site of this project is a hospital, where the power of a single medical crane tower is about 1.5 kVA. In this project, an split phase isolation transformer with a capacity of 10 VA is selected to supply power to six medical cranes at the same time. Because the isolation transformer will produce a large impact current when starting, which may cause the isolation transformer primary side circuit breaker to open or close the difficulty, so this project in the selection of the isolation transformer inlet and outlet circuit breaker, according to the national standard select only short circuit protection without overload protection function of the circuit breaker. The project uses a combination of 5 sets of medical isolation power supply products, sharing 9 sets of isolation power supply systems, including 10 kVA medical split phase isolation transformer, insulation monitor, protective current transformer, power module and alarm display. Each power distribution cabinet is equipped with a system. The power distribution cabinet is installed in the distribution room on the floor. Contact us today for more information on custom split phase isolation transformers.

  • Model: ATO-DGS
  • Phase: Single phase to split phase
  • Capacity: 1 kVA to 30 kVA (customized)
  • Primary Voltage: 1 Phase / 2 phase 110 to 480V
  • Secondary Voltage: 120V/240V AC(L1?L2?N;L+L=240V,L+N=120V)
  • Frequency: 50/60Hz
  • Winding Material: Aluminum/copper wire (customized)
  • Work Efficiency: ≥95%
  • Insulation Resistance: ≥50 MΩ
  • Electrical Strength: 2000V AC/1 min
  • Noise: ≤35dB (1 meter)
  • Insulation Grade: Grade B (130?), Grade F (155?), Grade H (180?)
  • Cooling Method: Natural or air cooling

(Note: If you want to know more about split phase isolation transformer specification, please check in catalogue.)
