Split Pressurized Solar Water Heater System

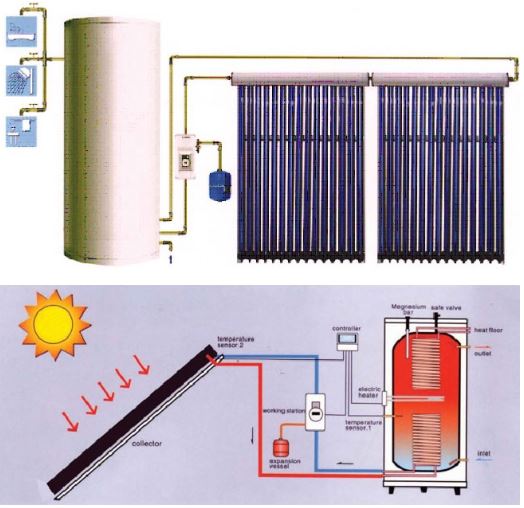

The split solar water heater is composed by heat collector, storage tank, controller, working station and installation parts. Collector is separated from storage tank, so the tank can be put in any place of house. And the collector can be put on the inclined or flat roof. Module design, arbitrary combination, harmony with the building perfectly. Intelligent control and automatic operation. Anti-freeze No water in the tubes when it works, also the system controller has the anti-freezing function which the temperature circulation will operate while it reached the fixed temperature. Multifunction bathing, washing, domestic heating, etc. Could work at anytime and use enjoyably.
Technical Parameter
- Inner tank SUS 304-2B/2mm
- Outer tank Galvanized steel/0.5mm
- Insulation high density polyurethane foam 50mm
- Vacuum tube 58*1800mm
- SS-CU-AIN/ALN coating
- Collator aluminum alloy casting and copper pipe channel
- Bracket Aluminum alloy 1.5mm
- 0-50 degree
- Accessories Circulation pump, expansion vessel, pyrometer, flow meter Working pressure 0.7bar
- Working temperature -35-50° C
- Capacity 150L 200L 250L 300L 500L
- Remark Three models of Shouting-S01:
- Century Sun-S010 no coiler Century Sun-S011 single coiler Shouting-S012 two coilers in the tank.
