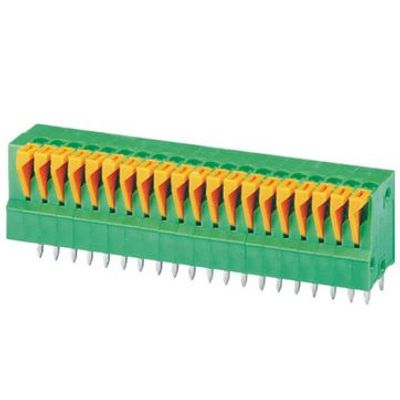

Max-Electronic - Model MX141V-2.54 - Spring Terminal Blocks
Test standard IEC/EN61984 : 2009 1 UL1059 . Pitch 2.5. Poles 02-xxp. EN61984 Test data UL certificate NO:E482989. Rated voltage 130. Rated current 6. Rated connection capaiylosolidistranded) [mm2] 0.2-1.0.
Most popular related searches
- Surge voltage category/pollution degree/material group ||/2/|
- Rated impulse voltage 1.25
- Rated torque /
- UL1059Test data UL File Number E228872
- Use group B C D
- Rated voltage 150 150 150
- Rated current 2 2 2
- Rated connection capacity (solid/stranded) [AWG] 24-20
- Rated torque /
- General data /
- Screw /
- nfammability class UL94 V-0
- Ambient temperature -40~+105
- Relative humidity 5%-95%
- Inspection standard MIL-STD-105E II
- AQL 0.65
- Warranty 12 months
- Material and plating /
- Housing PA66
- Spring Stainless
- Pin header Copper alloy，Sn plated
- Wire connecting
- 9-11mm; Recommended stripping length 9-11mm;
