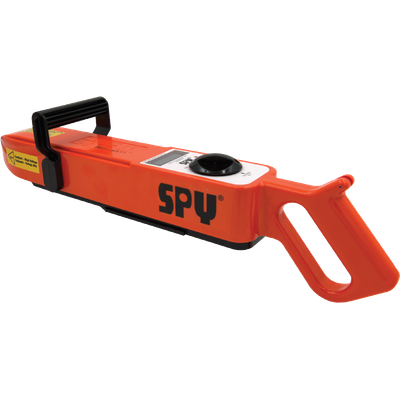

SPY - Model 790 -High Voltage Detector for Coating Inspections

SHARE
The SPY Model 790 offers a versatile tool for inspecting a wide range of coatings, from tape to extruded and coal tar, with thicknesses ranging from 50 to 750 mils (1.27mm to 19.05mm). This device is designed for easy handling and speed with an in-built Jeep meter. It allows for infinite voltage setting, precise to your specific requirements, and is equipped with auto-regulated voltage for consistency across various pipe sizes and conditions. The Model 790 features a quick-release battery, ensuring continuity with two batteries and a universal charger for ongoing service. Its durable ABS plastic case provides secure and weatherproof protection for the equipment. The detector complies with numerous standards, including AS 3894.1, ANSI/AWWA, ASTM, and NACE, making it a reliable choice for professional inspections.
Most popular related searches
high voltage detector
voltage regulation
voltage regulating
voltage regulator
automatic voltage regulator
battery charger
battery production
power optimization

For a wide range of coatings the easy-carry and easy to handle SPY Model 790 speeds inspection time with its built in Jeep meter and various other time saving and comfort features.

Model 790 (unit only)
Price: Contact us for a Quote or to be connected to a local Distributor in your area (713-681-5837 or sales@spyinspect.com)
Weight: 5 lb (2.3 kg)

Model 790 kit
Price: Contact us for a Quote or to be connected to a local Distributor in your area (713-681-5837 or sales@spyinspect.com)
Weight: 35 lb (15.9 kg)

INFINITE VOLTAGE SETTING allows you to set the voltage exactly to the level you desire for the coating you are inspecting. Not six settings, not twenty… any setting you desire over the complete range of each detector model. Whatever the pipe size, two inches through sixty inches, you have at your control the exact voltage setting required.

AUTO REGULATED VOLTAGE keeps your voltage constant! Over a range of two inch through sixty inch pipe the detector output voltage automatically adjusts under the working load to the voltage levels you set. Now you can forget compensations for pipe size, or moisture on the pipe – the detectors automatically make these adjustments.

QUICK RELEASE BATTERY easily slips into position with a snap that announces positive contact and a secure lock in position. Two batteries and a universal charger are part of the kit. For continuous service, one battery is kept charging (approx. 8 hours) while the other powers the unit.



IMPROVED CONTROL

  • Horn and light for holiday indication.
  • Easy carry top handle.
  • Comfortable ergonomic rear handle.
  • Infinitely adjustable voltage.
  • Output voltage automatically regulated.
  • Quick and easy battery installation.

FAST SETUP. INTELLIGENT OPERATIONS.

  • Integral Voltmeter to verify voltage setting.
  • Light cycles off to indicate holiday is present.
  • Louder audible alarm for heavy equipment environments.

PROVEN RELIABILITY

  • Lightweight and durable construction with proven leading edge circuitry.
  • Infinite specific voltage adjustments on the fly.

CARRYING / SHIPPING CASE

Molded ABS plastic construction assures secure weather-proof protection for detector and components. Parts are cushioned in a molded insert. Full-length piano-type hinge, rugged catches.

WEIGHT

Average domestic shipping weight (dependent on electrode size): 35 lbs. Export air shipping weight: about 50 lbs.

Voltage Type: Pulse
Voltage Range: 5-35 kV
Voltage Output Accuracy: ±5%
Coating Range (Min-Max): 50-750 mils (1.27mm-19.05mm)
Pulse Repitition Rate: 28 Hz
Operating Temperature: –4°F to 148°F (-20° to 64.5° C)
Internal Volt Meter: YES-User Adjustable
Display Type: LCD
Holiday Indicator Type: Audible/Visual
Power Type: 12V Rechargeable Battery
Quick Release Battery*: YES
Battery charge time: Approx. 8 Hours
Unit Weight (w/ battery): 7.45 lb
Unit Dimensions (w/o battery): 21.5” x 5” x 5.5” (L x W x H)
Unit Dimensions (w/ battery): 21.5” x 5” x 8” (L x W x H)
Domestic/International Standards Unit Complies With: AS 3894.1, ANSI/AWWA C203, ANSI/AWWA C214, ASTM D4787, ASTM D5162, NACE RP0274, NACE SP0188, NACE SP0490, NACE TM0186, NACE TM0384

*Battery life is dependent upon selected voltage and load applied. Typical battery life 8 hours.

2 – 12V Rechargeable Batteries
1 – 12V Charger
1 – 50 FT Ground Cable
1 – Electrode Wand w/ Spring Connector
1 – Shoulder Strap
1 – Shoulder Strap Handle Clip
1- Brush Adapter Kit
1- SPY® Screwdriver
1- Shipping / Carrying Case (Case Dimensions: 28” x 16” x 8”)
1- Operating Instructions
1- Certificate of Calibration traceable to NIST
