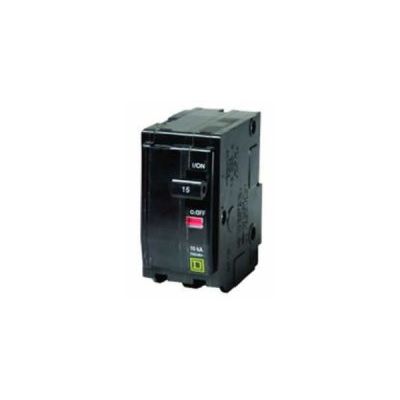

Square D - Model QO215 120/240VAC 2P 15A -AC Circuit Breaker

Weight: 0.52 lbs. Dimensions (HxWxD): 3.00` x 1.50` x 2.91`

Most popular related searches

Circuit Breaker Type: Standard
Features: VISI-TRIP trip indication
Ampere Rating: 15 Amps
For Use With: QO Load Centers, NQ & NQOD Panelboards/Interiors and Speed-D switchboard distribution panels
General Application: Provides overload and short circuit protection
HACR Rated: Yes
Marketing Trade Name: QO
Approvals: UL Listed - CSA Certified
Wire Size: #14 to #8 AWG(Al/Cu)
Phase: 1-Phase
Short Circuit Current Rating: 10kA
Voltage Rating: 120/240VAC
Space Required: 2
Mounting Type: Plug-On
Terminal Type: Pressure Plate
Number of Poles: 2-Pole
Type: QO
