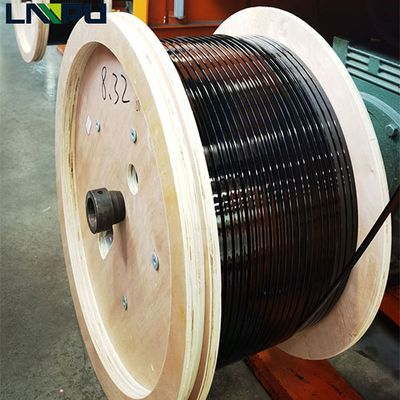

LP-Industry - Square Enameled Aluminum Wire
FromLP Industry
Square Enameled Aluminum Wire is made of oxygen free rod or electrical aluminum rod by a certain size of the die drawing or extrusion of the wire, the insulation paint through many times of the winding wire. Mainly used in winding of transformers, motors, generators, and various electrical devices. Aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) insulation materials; Standard: IEC, NEMA, JIS, GB. Spool materials: plastic, wooden.
Most popular related searches
- Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC);
- Standard: IEC, NEMA, JIS, GB;
- Spool materials: plastic, wooden;
- Dimension: 1.2-8mm
- It is made by soft and soft wire in accordance with the provisions of the 5584.2-85 GB, 20?when the resistivity is not greater than 0.01724?.mm2/m according to different mechanical strength requirements, the provisions of the semi hard conductor and aluminum conductor according to different mechanical strength requirements, semi hard conductor of non proportional C1Rp 0.2 (>100--180) N/mm2, C2Rp0.2 (>180--220) N/mm2, C3Rp0.2 (>220--260) N/mm2. 20 degrees of resistivity is less than 0.02801 ?.mm2/m according to different electrical insulation requirements, selection of thin film 0.06--0.11mm or the thickness of the film 0.12--0.16mm. The heat adhesion paint package wire self-adhesive layer thickness is generally 0.03--0.06mm.
- Name Enameled Square Aluminum Winding Wire
- Conductor Aluminum
- Dimension Thickness(a)/Width(b):1.2-8mm
- Thermal Class 120(Class E), 180(Class H), 200(Class C), 220(Class C+), 240(Class HC)
- Insulation Thickness: G1,G2 or single build, heavy build
- Standard IEC 60317-16,60317-16/28,MW36 60317-29 BS6811, MW18 60317-18 ,MW20 60317-47
- Certificate UL
- Packing 30kg-150kg ply-wood spool(250*400 / 250*500/ 250*600/ 250*730)
