Kenkio

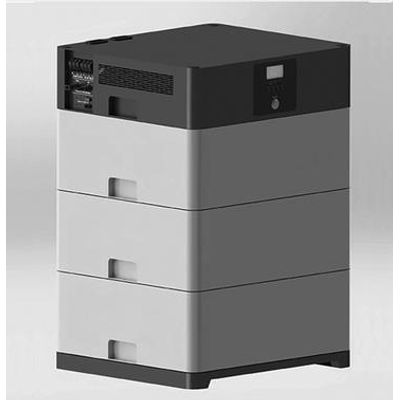

Kenkio - Model KK-SET300 -Stackable Energy Storage System
FromKenkio
LiFePO4 Battery 15KWH 51.2V 300Ah. Summary: 51.2V 300Ah 15KWH ,Portable Solar Charging Station,Battery Home Energy Storage. Application: Home Energy Storage.
Most popular related searches
energy storage
domestic energy storage
stackable energy storage system
solar charge
domestic energy
energy storage system
domestic energy storage battery
LiFePO4 battery
energy storage battery
battery energy storage
- Nominal Voltage: 51.2V
- Nominal Capacity: 300 Ah
- Capacity @60A: 300 min
- Resistance: ≤20 mΩ@50% SOC
- Efficiency: 99%
- Self Discharge: <3% perMonth
- Cycle Life: 2000 times DOD100% (0.5C)
- Maximum Modules in parallel: 15
- Maximum Continuous Discharge Current: 150 A
- Peak Discharge Current: 180 A (10 s)
- BMS Discharge Current Cut-Off: 450 A (320m s)
- Recommended Low Voltage Disconnect: 43.2 V
- BMS Discharge Voltage Cut-Off: 40 V (2.5 ±0.05 v) (2s)
- Reconnect Voltage: 43.2 V (2.7 ±0.1 v)
- Short Circuit Protection: 200-600 µs
- Recommended Charge Current: 60 A
- Maximum Charge Current: 60 A
- Recommended ChargeVoltage: 58.4 V – 58.4 V
- BMS Charge Voltage Cut-Off: 60 V (3.75 ±0.05 v) (2s)
- Balancing Voltage: 54.4 V (3.4 ±0.05 v)
- AC Input Voltage: AC 220V 50HZ / AC110V60HZ
- AC Output: AC 220V 50HZ /110V60HZ/ 15AMax
- AC Charging current: 60A Max
- AC Continuous Power: 5000W(220V) / 3500W(110V)
- AC peak Power: 8000W(220V)/ 4000W(110V)
- Highest conversion rate: 88-91%
- Solar panel power: 60-145V 4200WMax
- Solar charging current: 80A Max
- Solar Charge: MPPT
- Smart System: WiFi or GPRS
- Discharge Temperature: -4 to 140 °F (-20 to 60°C)
- Charge Temperature: 32 to 131 °F (0 to 55°C)
- Storage Temperature: 14 to 95 °F (-10 to 35°C)
- BMS High Temperature Cut-Off: 167 °F (75 ºC)
- Reconnect Temperature: 149°F (65 ºC)
- Dimensions (L x W x H): 560 x500 x 790 mm
- Weight: 451.9 lbs (205 kg)
- Case Material: SPCC
- Enclosure Protection: IP30
- Cell Type: LiFePO4:
- Certifications: UN38.3,CE,,FCC (Battery)
- Shipping Classification: UN 3480, CLASS 9
