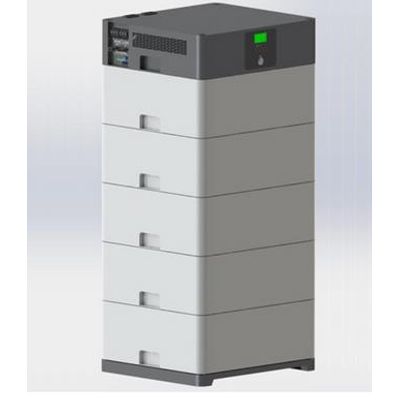

Kenkio - Model KK-SET500 - Stackable Home Energy Storage System
FromKenkio
LiFePO4 Battery 25KWH 51.2V 500Ah. Summary: 51.2V 500Ah 25KWH ,Portable Solar Charging Station,Battery Home Energy Storage. Application: Home Energy Storage.
Most popular related searches
domestic energy storage
domestic energy
energy storage
domestic energy storage system
solar charge
energy storage system
domestic energy storage battery
stackable energy storage system
LiFePO4 battery
energy storage battery
- Nominal Voltage: 51.2V
- Nominal Capacity: 500 Ah
- Capacity @60A: 500 min
- Resistance: ≤20 mΩ @50% SOC
- Efficiency: 99%
- Self Discharge: <3% per Month
- Cycle Life: 2000 times DOD100% (0.5C)
- Maximum Modules in parallel: 15
- Maximum Continuous Discharge Current: 150 A
- Peak Discharge Current: 180 A (10 s)
- BMS Discharge Current Cut-Off: 450 A (320m s)
- Recommended Low Voltage Disconnect: 43.2 V
- BMS Discharge Voltage Cut-Off: 40 V (2.5 ±0.05 v) (2s)
- Reconnect Voltage: 43.2 V (2.7 ±0.1 v)
- Short Circuit Protection: 200-600 µs
- Recommended Charge Current: 60 A
- Maximum Charge Current: 60 A
- Recommended ChargeVoltage: 58.4 V – 58.4 V
- BMS Charge Voltage Cut-Off: 60 V (3.75 ±0.05 v) (2s)
- Balancing Voltage: 54.4 V (3.4 ±0.05 v)
- AC Input Voltage: AC 220V 50HZ / AC110V60HZ
- AC Output: AC 220V 50HZ / 110V60HZ/ 15AMax
- AC Charging current: 60A Max
- AC Continuous Power: 5000W(220V) / 3500W(110V)
- AC peak Power: 8000W(220V) / 4000W(110V)
- Highest conversion rate: 88-91%
- Solar panel power: 60-145V 4200WMax
- Solar charging current: 80A Max
- Solar Charge: MPPT
- Smart System: WiFi or GPRS
- Discharge Temperature: -4 to 140 °F (-20 to 60 °C)
- Charge Temperature: 32 to 131 °F (0 to 55 °C)
- Storage Temperature: 14 to 95 °F (-10 to 35°C)
- BMS High Temperature Cut-Off: 167 °F (75 ºC)
- Reconnect Temperature: 149°F (65 ºC)
- Dimensions (L x W x H): 560 x500 x 1190 mm
- Weight: 694.4 lbs (315 kg)
- Case Material: SPCC
- Enclosure Protection: IP30
- Cell Type: LiFePO4
- Certifications: UN38.3,CE,FCC(Battery)
- Shipping Classification: UN 3480, CLASS 9
