Du-Co - Standard Ceramic Band Heater Insulators

SHARE

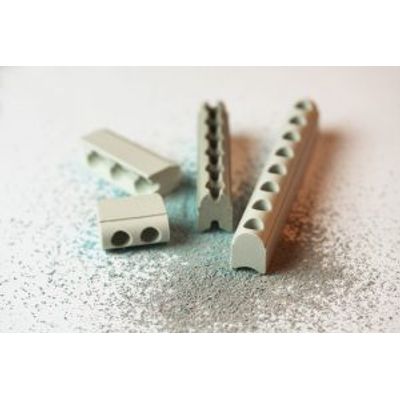

High quality ceramic band heater insulators or ceramic knuckles are encapsulated in a steel shroud. High temperature, coiled element wires run through the ceramic insulators. The band heater ceramics or knuckle ceramics located inside the heater are primarily used in plastic extrusion and injection molding applications.

Most popular related searches
ceramic band heater
band heater
Part No.         Material   No. of Holes   Hole Diameter   OD Length   OD Width   Thickness   Grooved   No Groove
A-2845 L-3 Steatite       8 0.25 3.375 0.625 0.468 X
A-2929 L-3 Steatite 6 0.25 2.375 0.625 0.468 X
A-2930 L-3 Steatite 4 0.25 1.875 0.469 0.625 X
A-2931 L-3 Steatite 6 0.25 2.875 0.469 0.625 X
A-2932 L-3 Steatite 4 0.203 1.375 0.469 0.625 X
A-2961 Cordierite 4 0.22 1.875 0.453 0.625 X
A-2962 Cordierite 6 0.22 2.375 0.453 0.625 X
A-2963 Cordierite 6 0.22 2.875 0.543 0.625 X
A-2964 Cordierite 8 80.242 3.375 0.453 0.625 X
A-3455 L-3 Steatite 2 0.25 0.875 0.469 0.625 X
A-3474 Cordierite 3 0.185 0.875 0.375 0.625 X
A-3517 L-3 Steatite 4 0.25 1.875 0.469 0.406 X
A-3518 L3-Steatite 6 0.24 2.875 0.469 0.625 X
A-3519 L3-Steatite 6 0.25 2.375 0.469 0.406 X
A-3520 L3-Steatite 8 0.25 3.375 0.469 0.406 X
A-3521 L3-Steatite 2 0.25 0.875 0.469 0.406 X
A-3522 L3-Steatite 4 0.203 1.375 0.469 0.406 X
A-3684 L-3 Steatite 9 0.25 3.875 0.468 0.625 X
A-3685 L-3 Steatite 6 0.14 1.36 0.312 0.305 X
Part No. Material No. of Holes Hole Diameter OD Length OD Width Thickness Grooved No Groove
A-3685-1 L-3 Steatite 6 0.14 1.36 0.312 0.4 X
A-3686 L-3 Steatite 4 0.14 0.937 0.312 0.312 X
A-3686-1 L-3 Steatite 4 0.14 0.937 0.312 0.4 X
A-3787 L-3 Steatite 4 0.242 1.875 0.453 0.625 X
A-3788 L-3 Steatite 4 0.242 1.875 0.453 0.625 X
A-3790 L-3 Steatite 8 0.242 3.375 0.453 0.625 X
A-3791 L-3 Steatite 8 0.242 3.375 0.453 0.625 X
A-3793 L-3 Steatite 6 0.242 2.875 0.453 0.625 X
A-3794 L-3 Steatite 6 0.242 2.875 0.453 0.625 X
A-3796 L-3 Steatite 6 0.242 2.375 0.453 0.625 X
A-3797 L-3 Steatite 6 0.242 2.375 0.453 0.625 X
A-3801 L-3 Steatite 4 0.205 1.375 0.375 0.625 X
A-3802 Cordierite 3 0.205 0.875 0.375 0.625 X
A-3957 L-3 Steatite 4 0.205 1.375 0.375 0.625 X
A-4073 Cordierite 4 -0.242 1.875 0.453 0.625 X
A-4074 Cordierite 6 0.242 2.375 0.453 0.625 X
A-4075 Cordierite 6 0.242 2.875 0.453 ).625 X
A-4076 Cordierite 4 0.205 1.375 0.375 0.675 X
A-4202 L-3 Steatite 4 0.21 1.365 0.453 0.675 X
Part No. Material No. of Holes Hole Diameter OD Length OD Width Thickness Grooved No Groove
A-4203 L-3 Steatire 4 0.21 1.375 0.453 0.625 X
A-4301 L-3 Steatite 6 0.25 2.375 0.469 0.625   X
A-4400 L-3 Steatite 4 0.25 1.875 0.469 0.625 X
A-4401 L-3 Steatite 6 0.25 2.375 0.469 0.625 X
A-4402 L-3 Steatite 6 0.35 2.875 0.469 0.625 X
A-4403 L-3 Steatite 8 0.25 3.375 0.469 0.625 X
A-4437 L-3 Steatite 4 0.203 1.33 0.469 0.625   X
A-4463 L-3 Steatite 3 0.25 0.875 0.469 0.625 X
A-4652 L-3 Steatite 2 0.266 0.94 0.453 0.625 X
A-4653 L-3 Steatite 3 0.266 1.42 0.453 0.625 X
A-4654 L-3 Steatite 4 0.266 1.9 0.453 0.625 X
A-4655 Cordierite 6 0.242 2.875 0.453 0.625 X
A-4656 Cordierite 6 0.242 2.375 0.453 0.625 X
A-4657 Cordierite 8 0.242 3.375 0.453 0.625 X
A-4658 Cordierite 4 0.242 1.875 0.453 0.625 X
A-4685 Corierite 4 0.205 1.375 0.375 0.625 X
A-4728 L-3 Steatite 8 0.14 1.861 0.312 0.4 X
A-4816 L-3 Steatite 6 0.242 2.375 0.453 0.406 X
A-4817 L-3 Steatite 8 0.242 3.375 0.453 0.406 X
A-4846 L-3 Steatite 6 0.232 1.882 0.4 0.5 X
Part No. Material No. of Holes Hole Diameter OD Length OD Width Thickness Grooved No Groove
A-5010 L-3 Steatite 1 0.266 0.46 0.45 0.625 X
A-5231 96% MgO 6 0.25 2.58 0.453 0.625 X
A-5337 L-5 Steatite 6 0.242 2.375 0.455 0.625 X
A-5600 L-5 Steatite 6 0.242 2.375 0.45 0.625 X
A-5609 L-5 Steatite 4 0.242 1.583 0.45 0.625 X
A-5650 L-5 Steatite 2 0.242 0.792 0.45 0.625 X
A-5806 L-5 Steatite 3 0.242 1.188 0.45 0.625 X
A-6062 L-5 Steatite 1 0.242 0.396 0.45 0.625 X
A-6063 L-5 Steatite 8 0.242 3.17 0.45 0.625 X
